Parameters
8.2.11 RPO (Reactive Power outside of feed-in Operation)
KACO blueplanet 1000/875/750 TL3 M1 IS OD DEXo Model has a function to inject the reactive power only to
the grid at night and when PV power is low due to cloud. If the inverter generates the reactive power when PV
module don’t generates power, it can affect the grid stabilization.

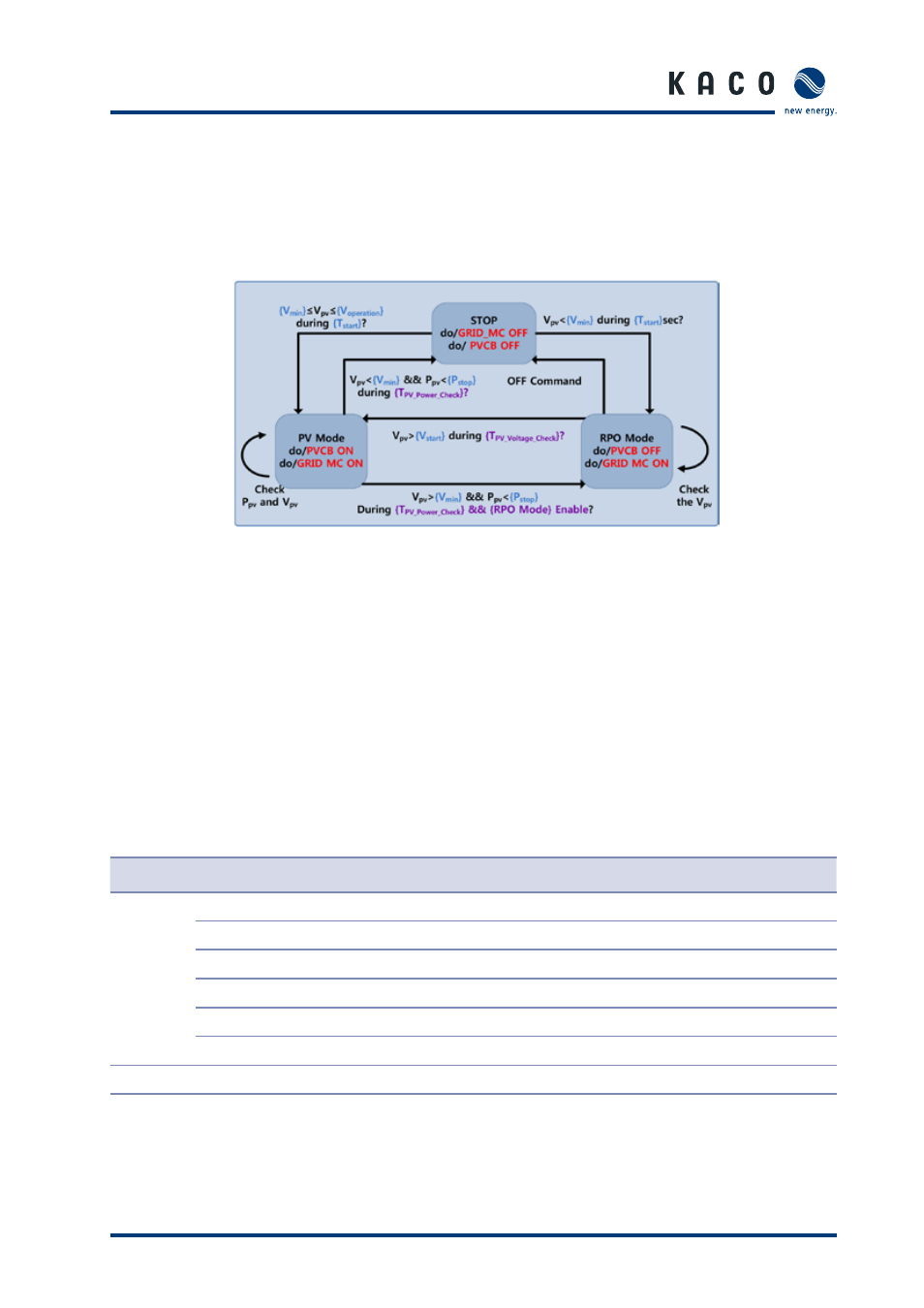

Figure 104: RPO Sequence
In above the figure, Mode Change has a condition as follows,
– From PV Mode to RPO Mode
1. V
pv
> V
min
&& P
pv
< {P
stop
} during {T
PV_Power_Check
}
2. V
pv
< V
min
&& P
pv
< {P
stop
} during {T
PV_Power_Check
}
– From RPO Mode to PV Mode
1. V
pv
> {V
start
} durning {T
PV_Voltage_Check
}
Inverter is in RPO Mode, we can adjust the reactive power by parameter without revising {COSPHI Control
Mode}
Tab Number Parameter Min Max Default Value
PV Array
2 MPPT V Start 200 800 700V
4 MPPT P Stop 0 3600 6000W
6 MPPT V Minimum 200 800 505V
15 PV Power Check Time 0 3600 180
16 PV Voltage Check Time 0 3600 3600
17 RPO Mode 0 1 0
Controller 47 COSPHI Reactive Power Internal -99.9 99.9 0%
Table 35: Related Parameters (ex. BP1000 Model)
