KACO blueplanet 750 - 1000 kVA - Manual (Page 54)

Page 54 KACO blueplanet 1000/875/750 TL3 M1 IS OD DEX0
Storage/Installation/Start-up
5.12 Connecting to inverter via Wi-Fi in local
HMI has Wi-Fi module that can operating AP mode. Smart Device can connect HMI AP.
5.12.1 IPhone CMT Application
After carry out App. Store, type “kaco” in the research tap. After you go into the set-up of Wi-Fi network,
choose ‘Model Name_Serial No.’
→

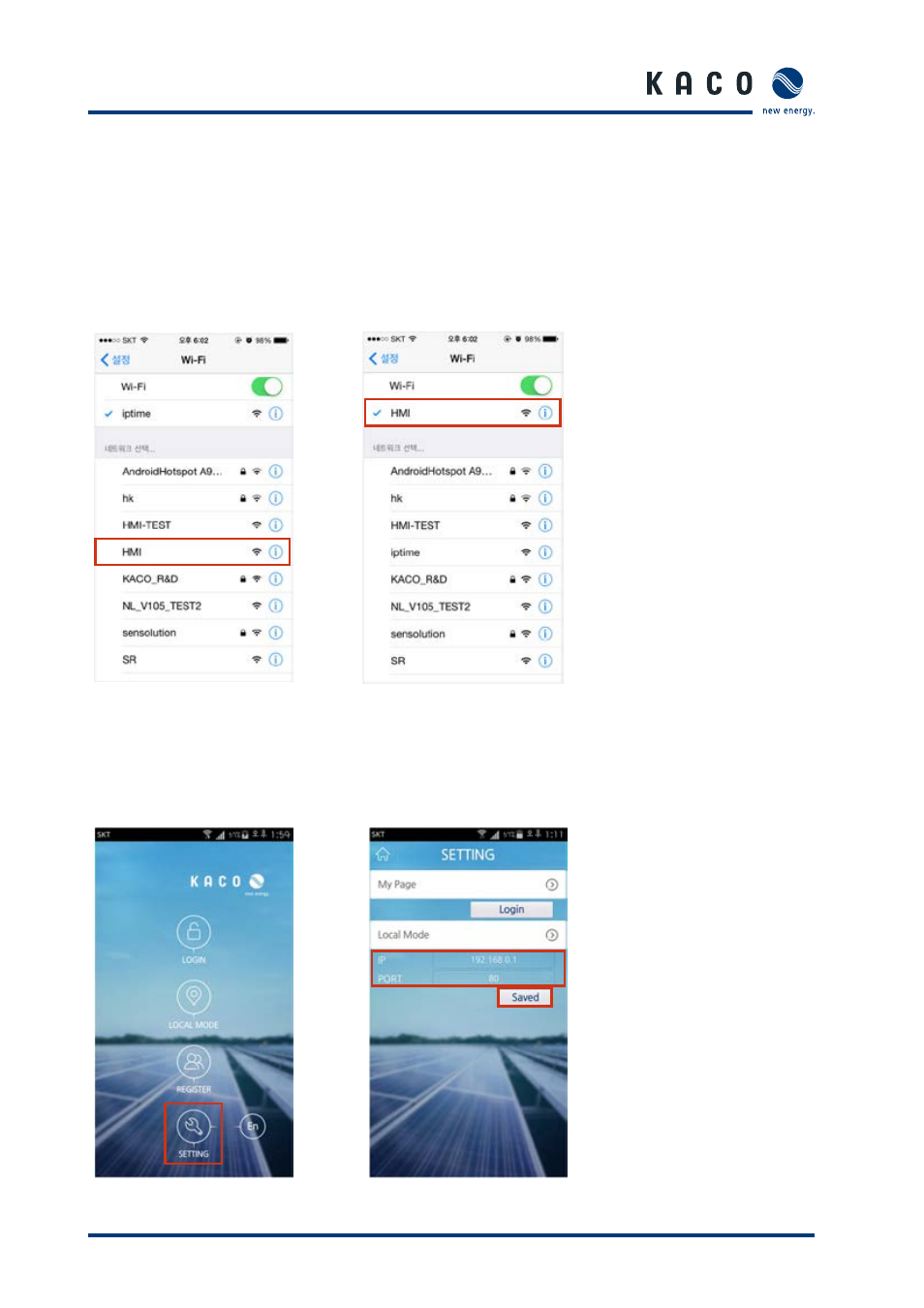

Figure 56: Wi-Fi setup screen
After you execute CMT, touch the ‘SETTING’ button on the screen. Enter the HMI WIFI IP Address and port
number (Default WIFI IP is 192.168.0.1 and Port is 80 in HMI V1.05 or under version, in case of HMI V1.06 or
later version you may use the changed WIFI IP and port) then touch ‘Saved’ button. After that, you can use
variety function via app.
Figure 57: Local-connection setup screen
