Unit Description
3.3 Components inside the inverter
Front side
14
12
13
11
10
9
8
1
7
2
3
4
6
5

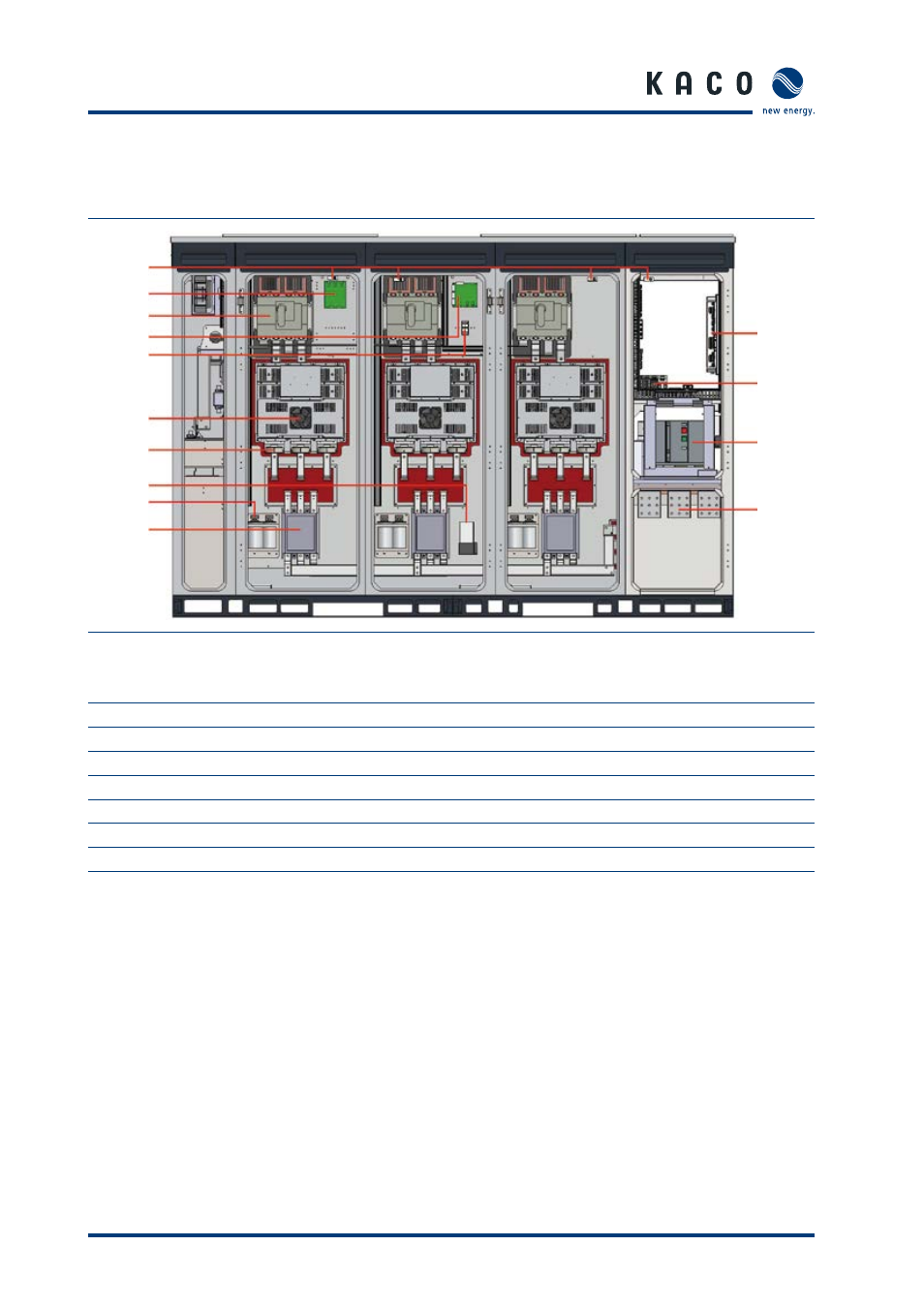

Figure 6: Components inside the inverter (front side)
Key
1 XCU Module 8 AC current transformer
2 SMPS 9 PSFAN
3 CB20 (MCCB for AC grid connection) 10 Fuse for DC voltage detection
4 AC connection 11 PSIM (Master control for interface)
5 MC21 (Contactor for grid connection) 12 DS10 (Disconnect switch for 1100V DC side)
6 LC filter (capacitor) 13 GFD (Ground fault detection)
7 Heater 14 Door sensor
