8.3 PQ Diagram
8.3.1 BP1000-TL3-OD

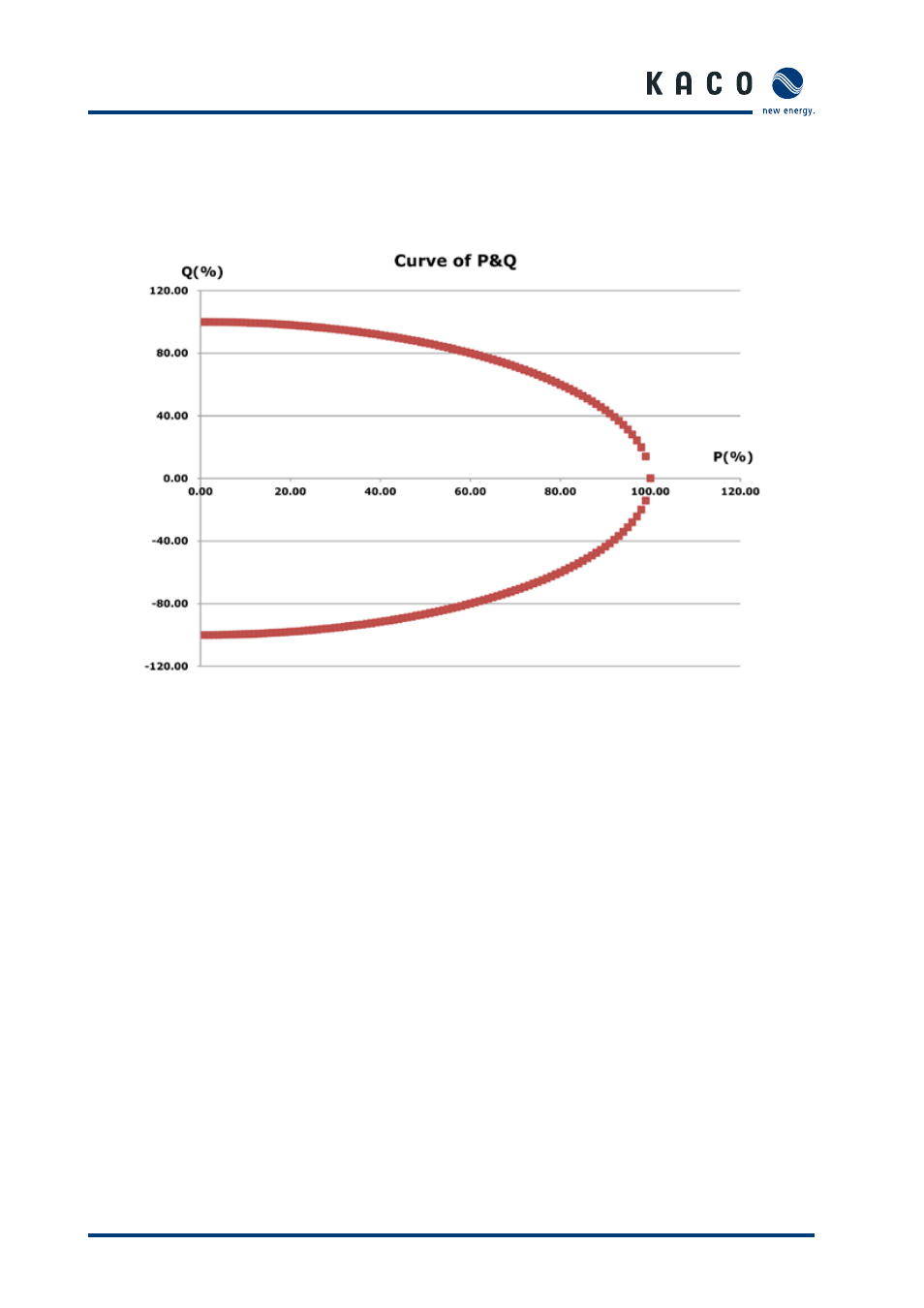

Figure 105: PQ Diagram of the KACO inverter
The output power limit is based on apparent power which is 100% of the rated power. In other words, where
the apparent power is over the rated power, active/reactive power is reduced at same rate respectively so that
the final output power does not exceed 100% of the rated power.
When changing the power factor from 1 to 0.9, the active power is down to 90% and the reactive power will
be up from 0% to 43.6% since the final output apparent power should be remained at 100% of rated power
.
