10-3
Troubleshooting > Regular Maintenance
Paper Transfer Unit
The paper transfer unit should be cleaned each time the toner container and waste toner box are replaced. To maintain
optimum print quality, it is also recommended that the inside of the machine be cleaned once a month as well as when
the toner container is replaced.
Print problems such as soiling of the reverse side of printed pages may occur if the paper transfer unit becomes dirty.
Wipe away the paper dust on the registration roller and the paper ramp using the cloth.
CAUTION
Some parts are very hot inside the machine. Exercise caution as there is a risk of burn injury.
IMPORTANT
Be careful not to touch the transfer roller and transfer belt during cleaning as this
may adversely affect print quality.

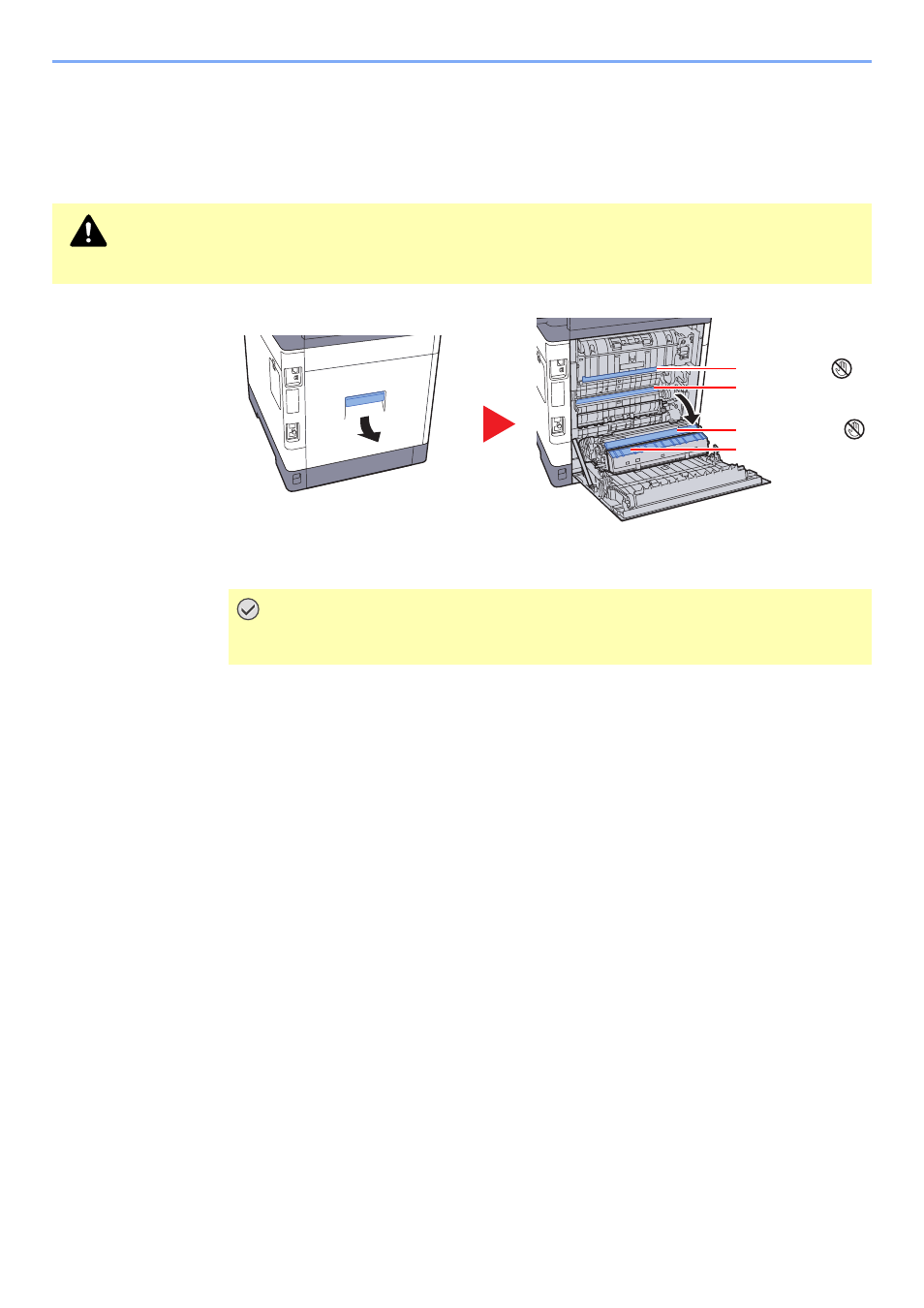

Transfer Belt
Registration Roller
(Metal)
Transfer Roller
Paper Ramp
