Installing and Setting up the Machine > Touch Panel

Help Screen

If you have difficulty operating the machine, you can check how to operate it using the touch panel.

When the [?] (help) is displayed on the touch panel, you can select it to display the Help screen. The Help screen shows
explanations of functions and how to use them.

Example: Checking the paper selection Help screen

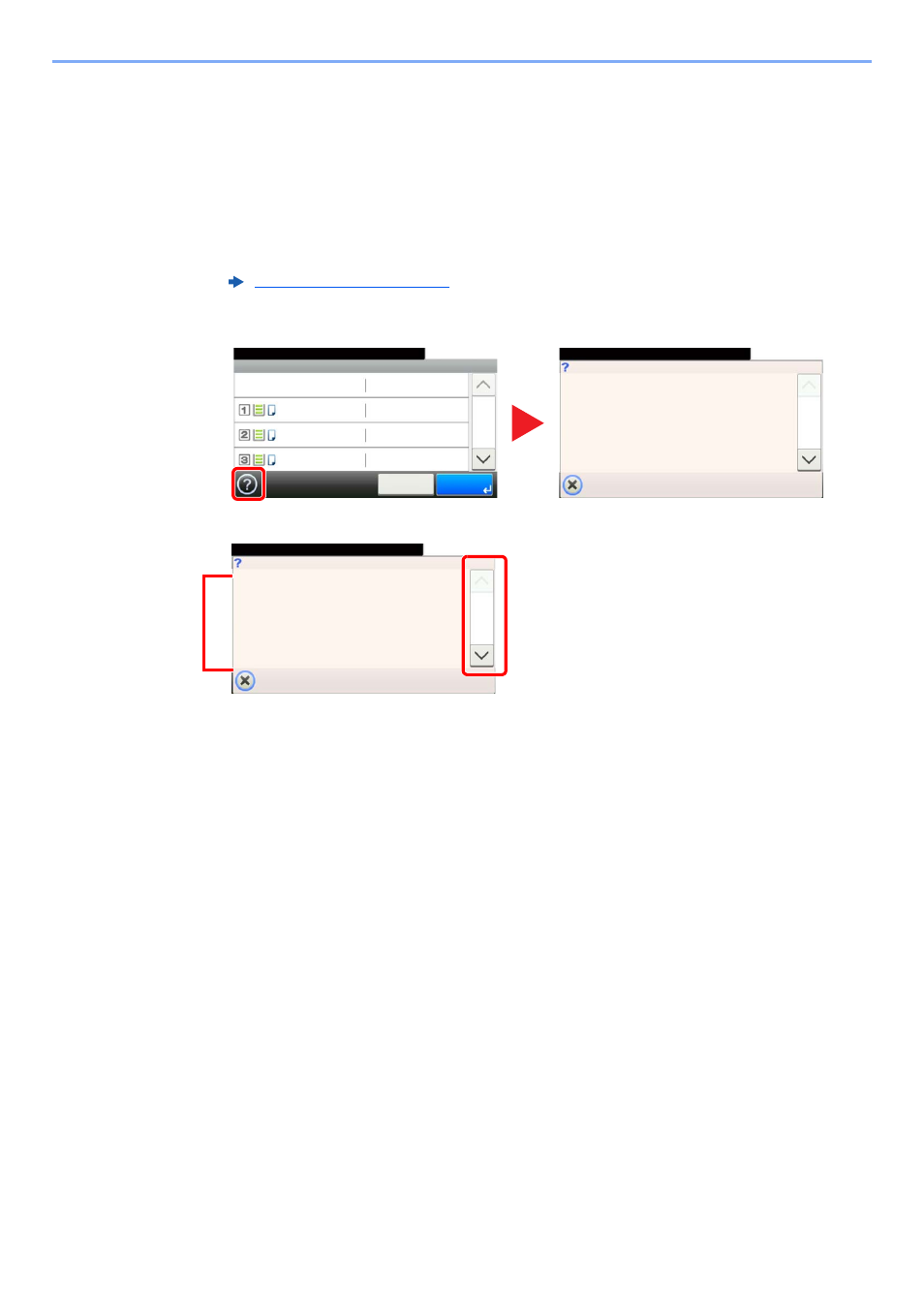

1

Display the Paper Selection screen.

2

Paper Selection (page 6-10)

Paper Selection

Auto

10:10

A4

OK

Cancel

1/2

Plain

A4

Plain

A4

Plain

Ready to copy. (Full Color)

Select the cassette or multi purpose tray
with the desired paper size.

Auto: Automatically selects the appropriate
paper size.
Cassette 1: Selects the paper in cassette 1.
Cassette 2: Selects the paper in cassette 2.
Cassette 3: Selects the paper in cassette 3.
Cassette 4: Selects the paper in cassette 4.
MP Tray: Selects the paper in the multi purpose tray.

Paper Selection

10:10

1/2

Ready to copy. (Full Color)

Select the cassette or multi purpose tray
with the desired paper size.

Auto: Automatically selects the appropriate
paper size.
Cassette 1: Selects the paper in cassette 1.
Cassette 2: Selects the paper in cassette 2.
Cassette 3: Selects the paper in cassette 3.
Cassette 4: Selects the paper in cassette 4.
MP Tray: Selects the paper in the multi purpose tray.

Paper Selection

10:10

1/2

Ready to copy. (Full Color)

1 Help titles

2 Displays information about functions

and machine operation.

3 Closes the Help screen and returns to

the original screen.

4 Scrolls up and down when the help

text cannot be displayed in its entirety
on a single screen.

4

3

1

2
