Using the Operation Panel

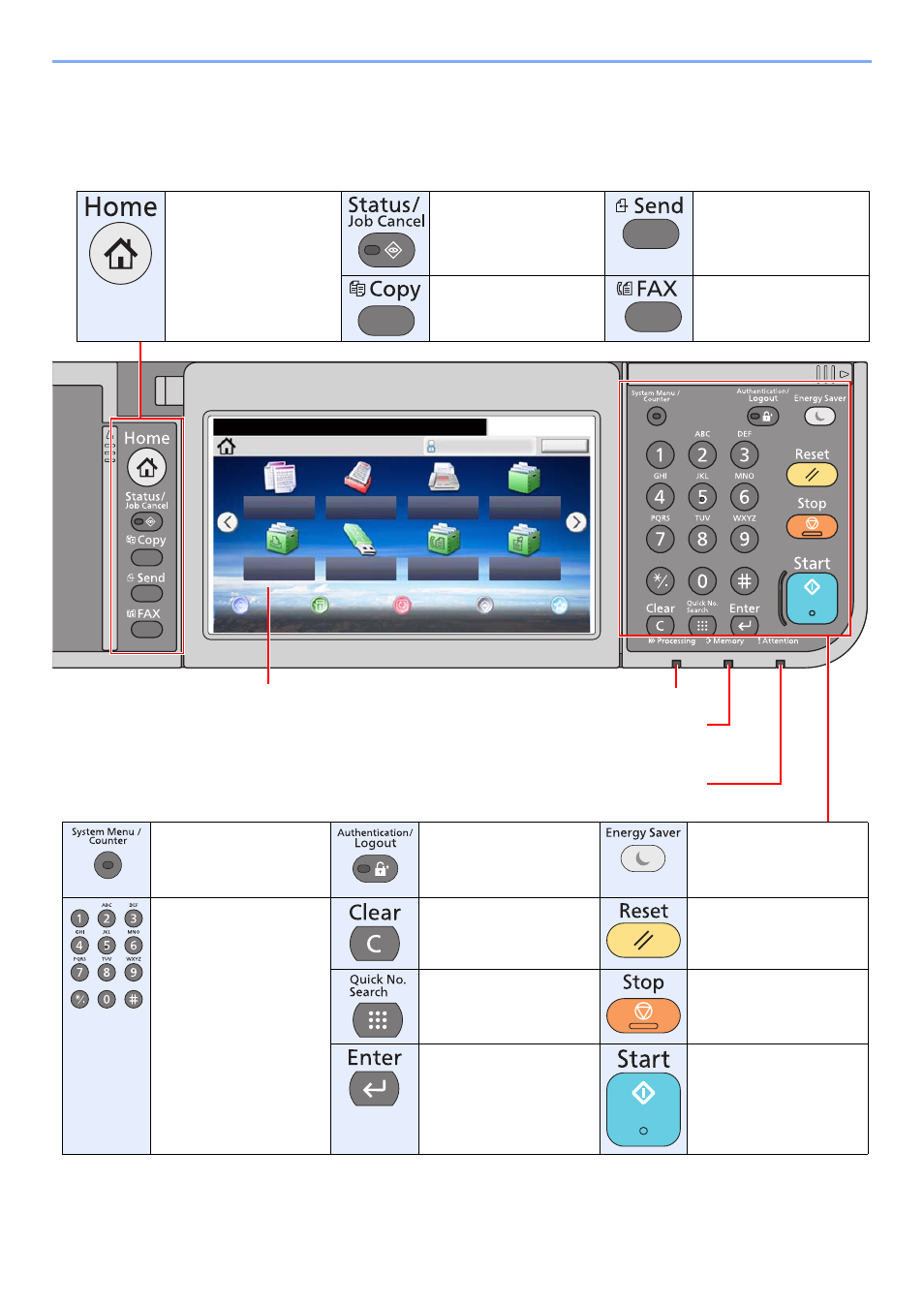

Operation Panel Keys
Select the function.
Home Admin
Copy
Status/
Job Cancel
10:10
Logout
Send Custom Box
Job Box
FAX
Sub Address Box Removable
Memory
Polling Box
Device
Information
Language System
Menu
Favorites
Lights or blinks when an error occurs and a job is
stopped.
Blinks while printing or sending/receiving.
Blinks while the machine is accessing the machine
memory, fax memory or USB memory (general
purpose item).
Displays the Home screen. Displays the Status/Job
Cancel screen. Displays the screen for
sending. You can change it
to display the Address
Book screen.
Displays the Copy screen. Displays the FAX screen.
Touch panel.
Displays buttons for
configuring machine
settings.
Displays the System Menu/
Counter screen. Authenticates user
switching, and exits the
operation for the current
user (i.e. log out). Puts the machine into
Sleep Mode. Recovers
from Sleep if in Sleep
Mode.
Numeric keys.
Enter numbers and
symbols. Clears entered numbers
and characters. Returns settings to their
default states.
Specifies registered
information such as
address numbers and user
IDs by number. Cancels or pauses the job
in progress.
Finalizes numeric key entry,
and finalizes details during
setting of functions.
Operates linked with the
on-screen [OK]. Starts copying and
scanning operations and
processing for setting
operations.
