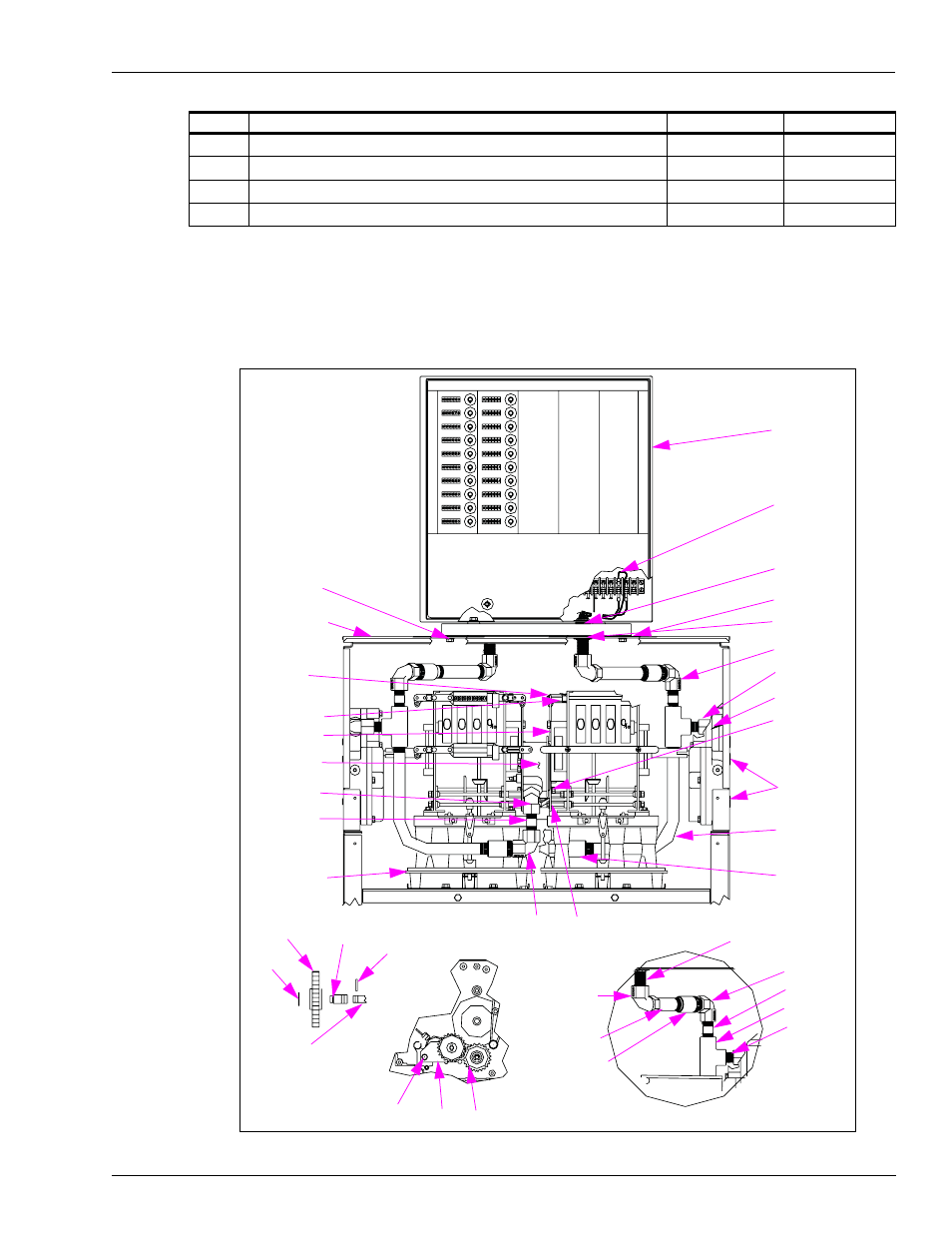

PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 103
Mechanical Computer, Reset, and Pulser with Electrical Keytrol Mechanical Computer and Reset Section
Note: Specify standard color (black, white, red). If not a standard color, specify serial number
of pump/dispenser.
Single and Dual (Dual Unit Shown)
PULSER PULSER (SWITCH) MOTOR (SWITCH) MOTOR
4
14
15
13
12
13
8
7
See Detail C 21
17, 24
Computer
Shaft
20
19 18
23
27
33
32
26
28
22
16, 17
36
38, 37
14
42, 43
41
10, 11
See Detail A
5
3
17, 29
9
6
7
1
See Detail A
31 13
Detail C
41 Gasket, 1/8 X 1/4 x 3’ LG 027146 -
42 Term, Wire Spade #8 (16-14)-BLU Q11024-02 -
43 Term, Wire Spade #6 (22-16)-RED C01028 -
44 Square Cut Ring, #7-214 049001 -
Item# Part Description Current Part Previous Part
