Hydraulic Area Section Lower Hydraulics - Dispenser
Page 36 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

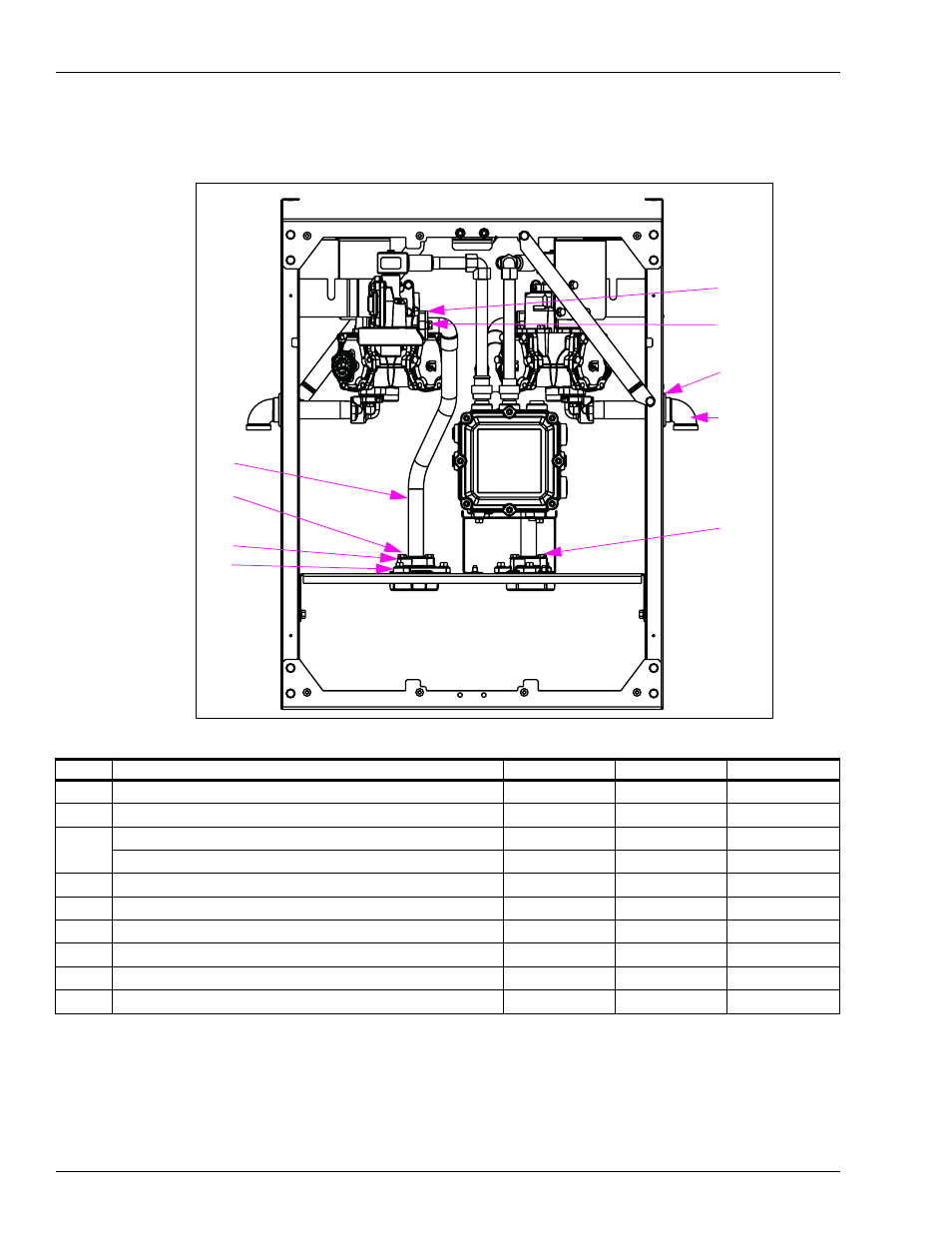

Lower Hydraulics - Dispenser
4
6
7
8
2
3
9
5
1
Item # Part Description Current Part Previous Part Quantity
1 Inlet Adapter Dispenser M05582B010 - 1 per grade
2 O-Ring 1.234 X 0.139 Q10068-09 - 1 per hose
3 Feedline Assembly Dispenser 1GR 1HS M05646A001 - 1 per grade
Feedline Assembly Dispenser 1GR 2HS M05647A001 - 1 per unit
4 O-Ring 1.109 X 0.139 Q10068-07 - 1 per grade
5 Flange, Feedline M04662B001 - 1 per grade
6 Elbow 1 In. X 90 Deg. Painted 024895 - 1 per hose
7 Grommet, Discharge 1 In. Pipe 028950 - 1 per hose
8 Screw Metric M8 X 16 M00415B009 - 2 per hose
9 Screw Metric Hex w/Ext Lock Washer (SEMS) M05230B009 - 2 per grade
