PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 29
Upper Hydraulics - Meter, Manifold, and Valve Hydraulic Area Section
Hydraulic Area Section
Upper Hydraulics - Meter, Manifold, and Valve

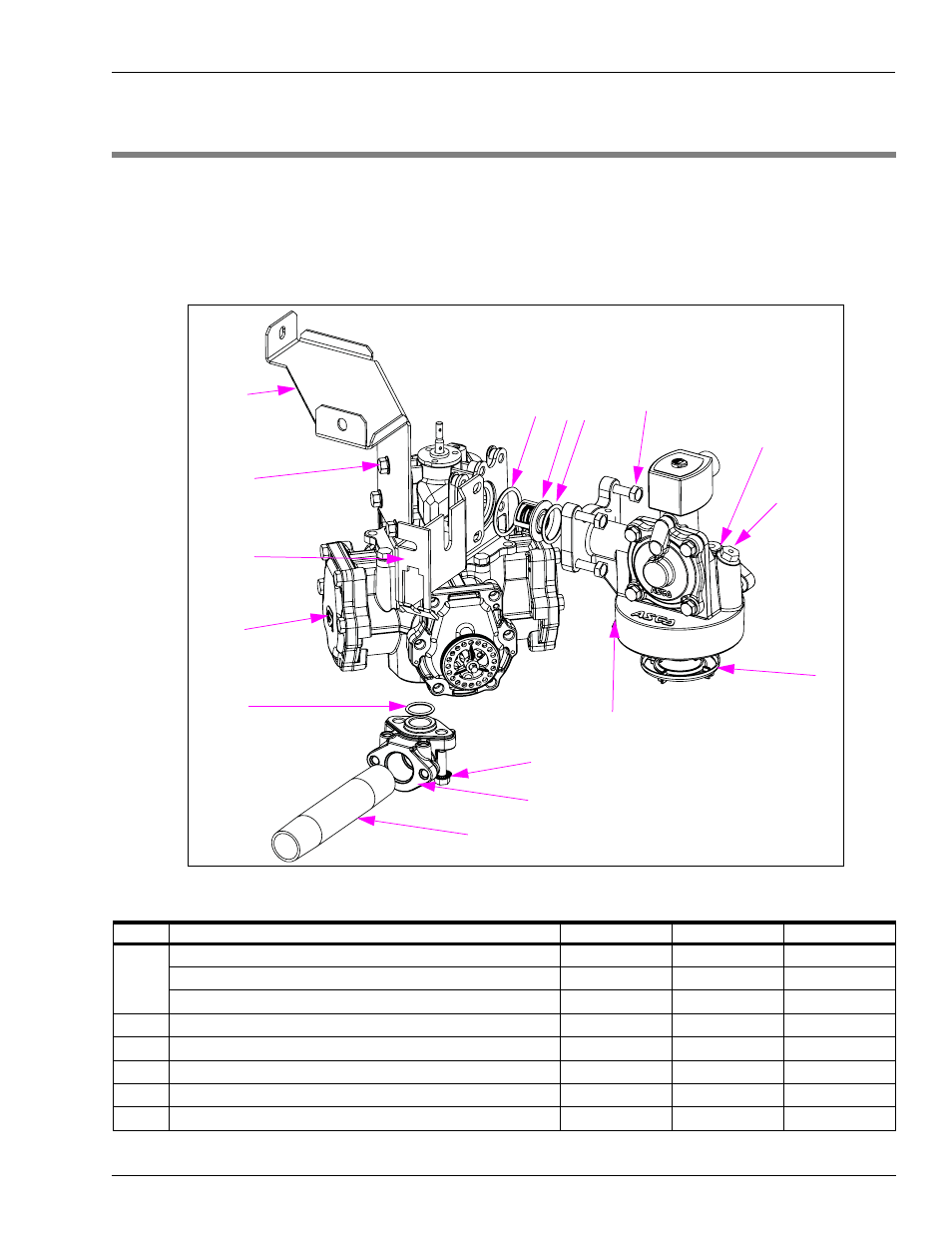

CFT Meter, Manifold, and Valve Assembly
14
3
2
4
7
5
11
6
12
8 9 10
1
16
15
13
Note: Quantities are in per meter.
Item # Part Description Current Part Previous Part Quantity
1 CFT Meter Assembly Electronic T20150-G5 - 1
CFT Meter Assembly Mechanical Gallons T20150-G6 - 1
CFT Meter Assembly Mechanical Liters T20150-G7 - 1
2 Bracket Meter Manifold Support M04259B001 - 1
3 Screw, Hex Ser Flng Hd 5/16 - 18 X 0.62 Q10253-02 - 3
4 O-Ring 1.234 X 0.139 Q12974-118 - 1
5 Fitting, Discharge Meter X Hose M04624B020 - 1
6 Screw Metric M8 X 25 M00415B011 - 2
