PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 77
Electronic Retail PCBs Retail Printed Circuit Boards
Retail Printed Circuit Boards
Electronic Retail PCBs
Where Used:
All = All Electronic Retail Units
1 = Standard Electronic Retail Units 4 = Electronic Retail Units with ATC and PPP
2 = Electronic Retail Units with ATC 5 = Electronic Retail Units with Pulse-out
3 = Electronic Retail Units with PPP 6 = Electronic Retail Units with Front-load Nozzle Boot
Part Description Where Used Current Part Previous Part Quantity
PCA, Pump Interface 1, 2, 3, 4 T18994-G1 - 1 per unit
PCA, Pump Controller 1, 2, 3, 4 T20092-G1 - 1 per unit
PCA, Optimum ATC GR-4 2, 4 T20569-G1 - 1 per unit
PCA, Pump Interface, Retail Pulse-out 5 M05200A001 - 1 per unit
PCA, Pump Controller 5 T20011-G1 - 1 per unit
PCA, Pump Preset (PPP) 3, 4 T17331-G3 - 1 per unit
PCA, Front-load I.S. Barrier 6 T19301-G1 - 1 per unit

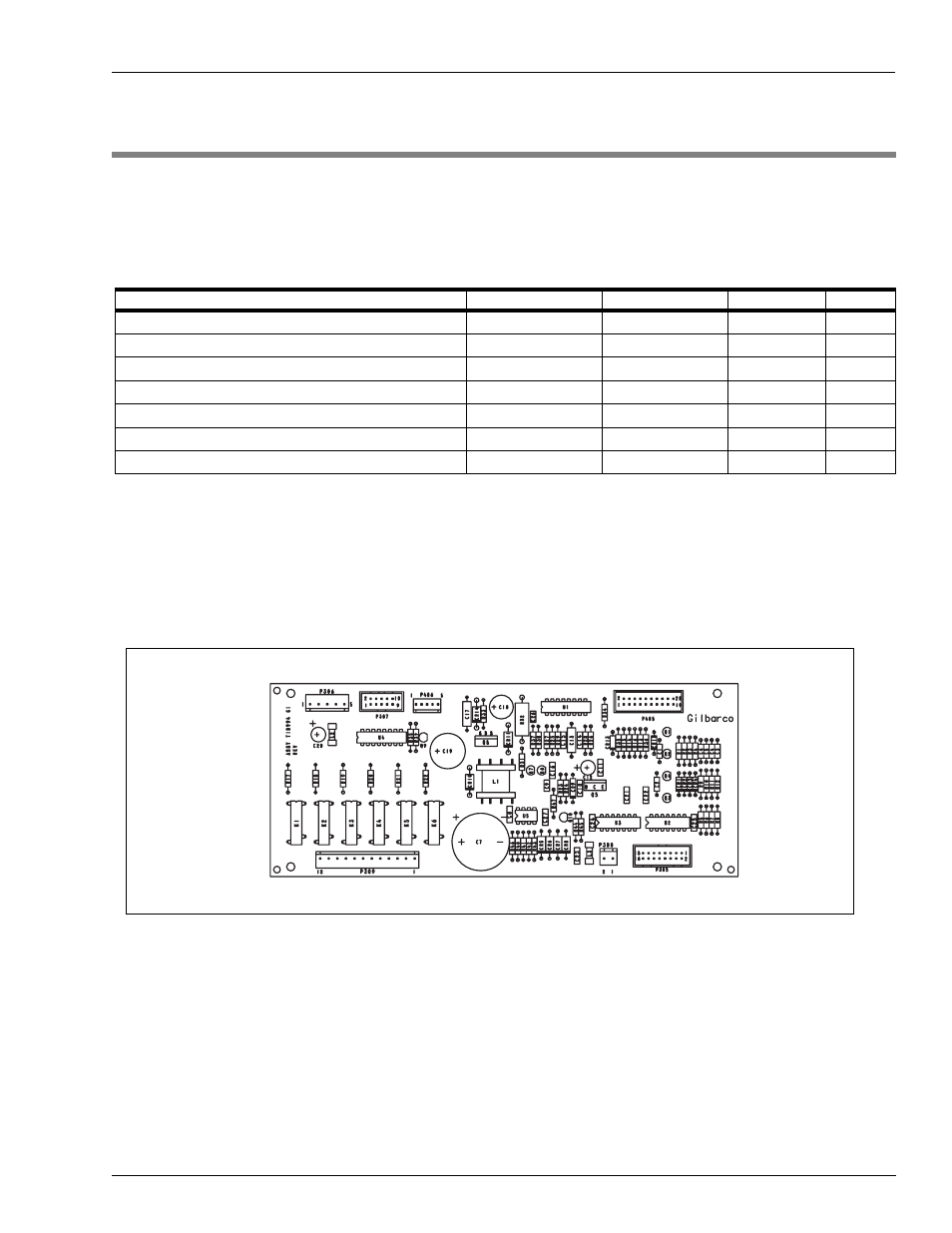

AT_PumpPCA_interface
T18994-G1 - PCA, Pump Interface
See the following Electronic Retail PCB graphics.
