Frame Section Dispenser Frame
Page 22 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

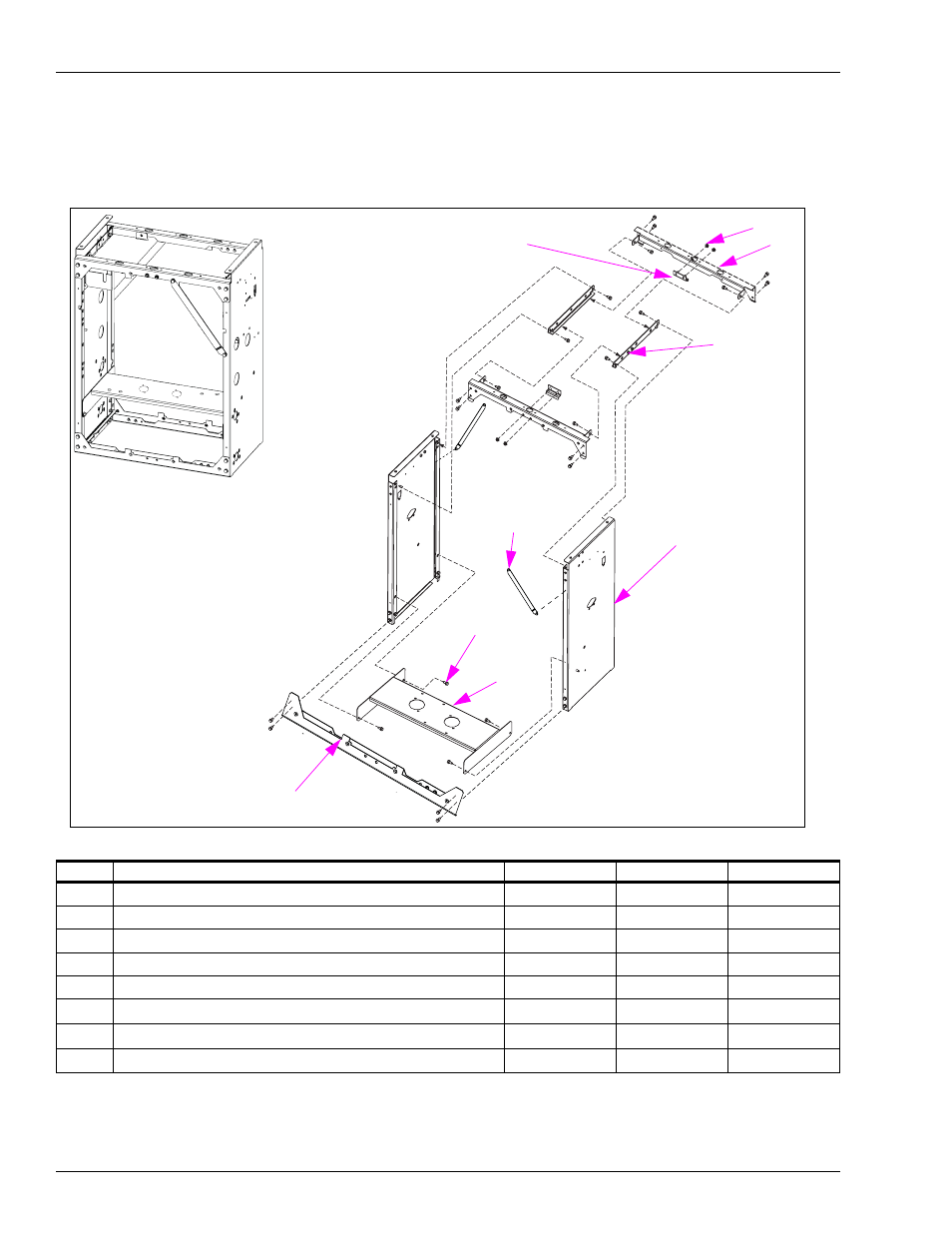

Dispenser Frame
Note: Units built prior to 12/11/2008.
2
3
1
5
4
7
6
8
2
Item # Part Description Current Part Previous Part Quantity
1 Lower Frame Column M06628A001 - 2
2 Base Rail Frame M04460B001 - 4
3 Column Cross Bracket M04251B001 - 4
4 Lock Plate Bracket M04774A001 - 2
5 Dispenser Inlet Rail (Dispenser only) M05645B001 - 1
6 • Screw (M8 X 18) - - 28
7 • Nut (M8 Serrated) - - 4
8 Brace, Frame M06733B001 - 2
