Retail Electronics Section Power Supply
Page 72 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

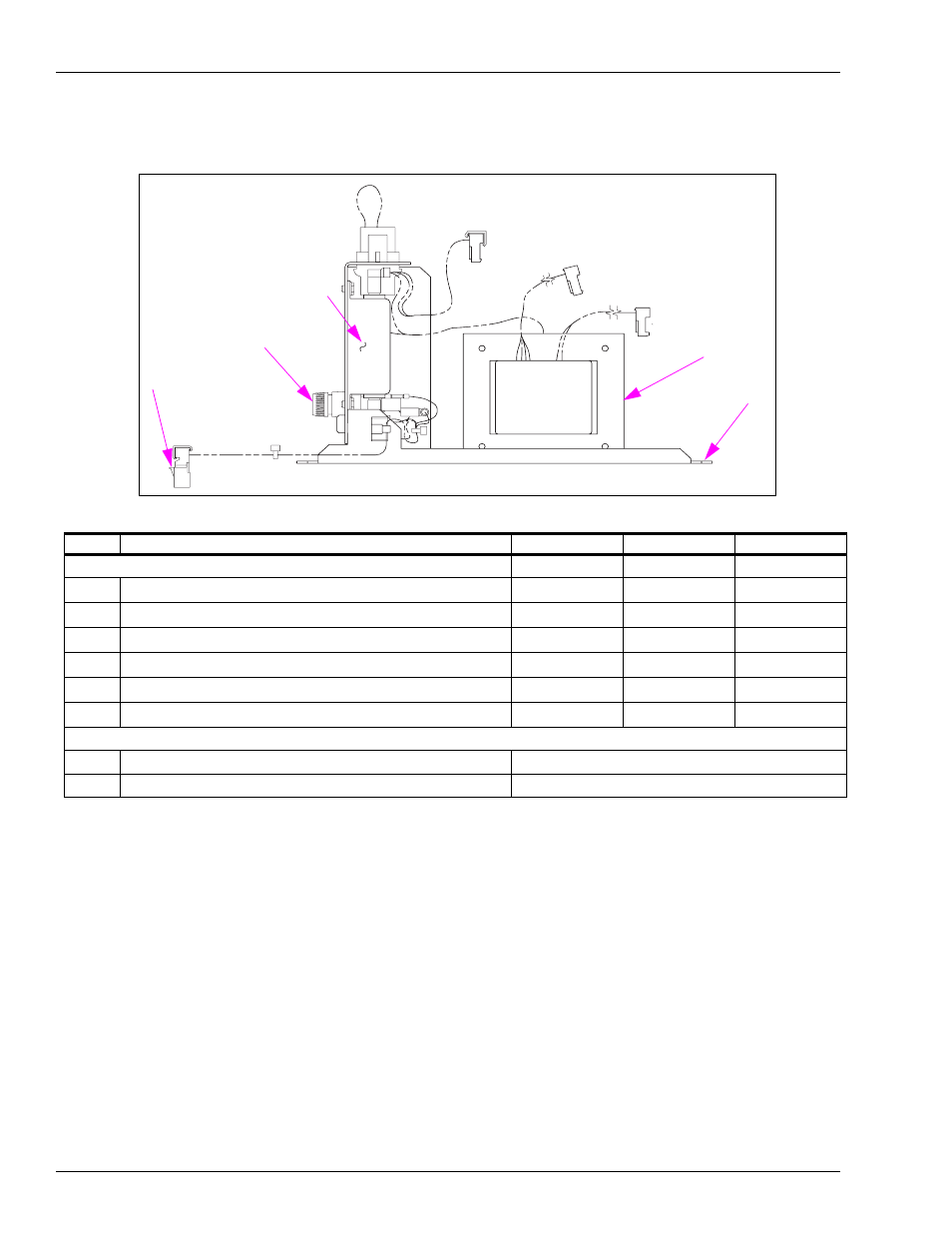

Power Supply
2
3
4, 5
1
6
Item # Part Description Current Part Previous Part Quantity
Power Supply Assembly T19868-G1 - 1
1 • Bracket, Power Supply T19696-01 - 1
2 • Transformer, Sub-assembly R20333-G1 - 1
3 • Filter Q10895-07 - 1
4 • Fuse Holder Assembly Q11781-01 - 1
5 • Fuse 3 A, 250 SB Q10131-03 - 1
6 • Cable, Power Supply R20283-G1 - 1
Not shown
7 Varistor Assembly Refer to “Retail Cables” on page 85
8 Voltage Select Plug Refer to “Retail Cables” on page 85
