PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 155
Displays and Display Panels Ultra-Hi Commercial Printed Circuit Boards
Displays and Display Panels

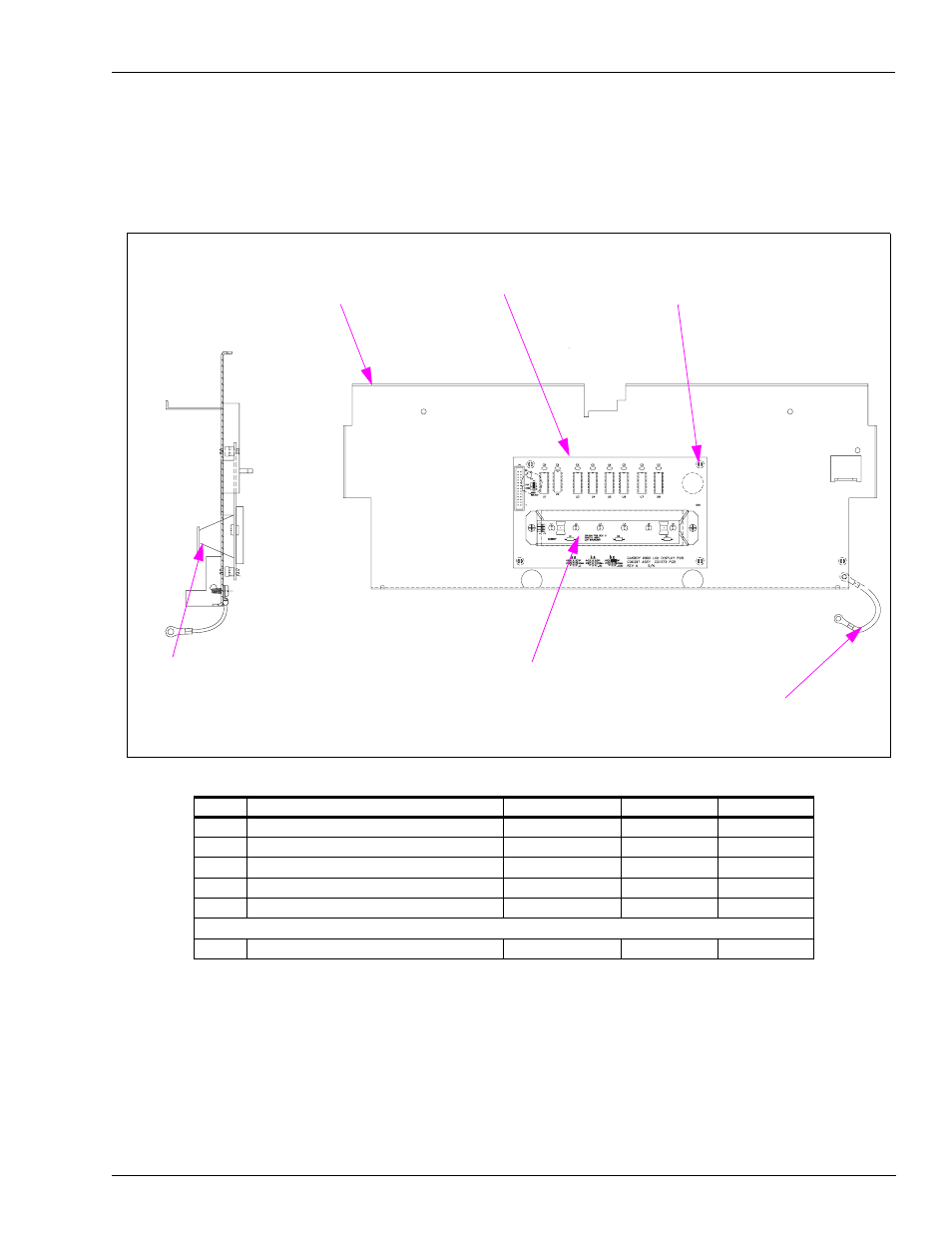

Ultra-Hi Display Panel and PCBs - Single and Combo Dual
4
5
6
2
M05770A001 (2 per unit)
3
1
Item # Part Description Current Part Previous Part Quantity
1 Panel PCB Support Single M05641B001 - 1
2 PCB Assembly, LCD Display C06387 - 1
3 Reflector LCD-Backlight 9 C35399 - 1
4 PCB Assembly, LED Sale Bklight C06372 - 1
5 Cable Assembly, Gnd #8R+Braid C06454 - 1
Not Shown
6 Mntg Button, 0.031/0.094 Grip C09701 - 2
