Gasboy Atlas Commercial Series - Manual (Page 39)

PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 33

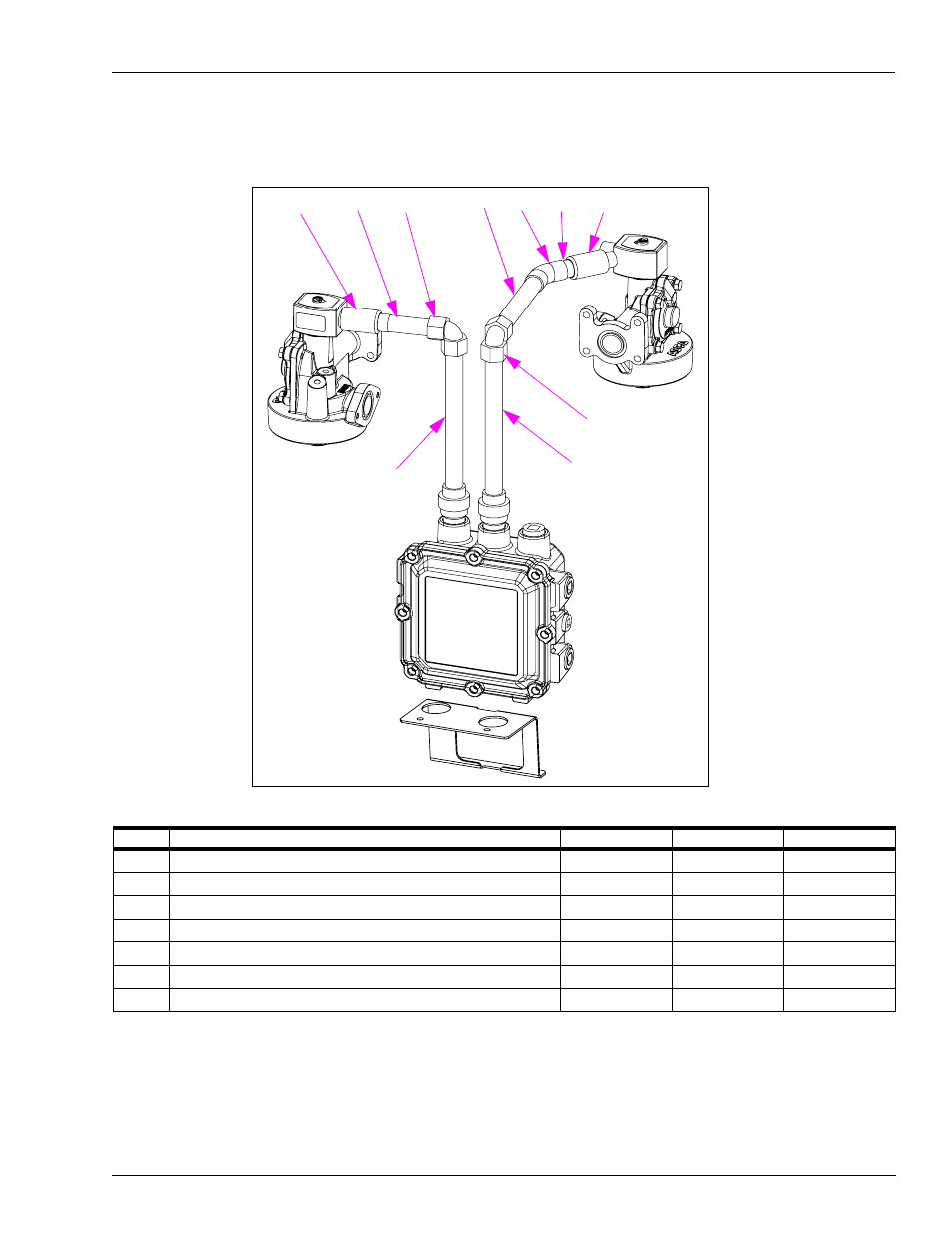

Solenoid Valve Conduit Hydraulic Area Section
Solenoid Valve Conduit
1
3
7
2 6 4
1 3 7
5
Side B
Side A
Item # Part Description Current Part Previous Part Quantity
1 Conduit Elbow 1/2 NPT 90º K42428 - 2
2 Conduit 1/2 X 1-1/8 R11976-39 - 1
3 Conduit 1/2 X 3-1/4 R11976-52 - 1
4 Conduit 1/2 X 6-3/8 R11976-67 - 1
5 Conduit 1/2 X 9-1/8 R11976-76 - 2
6 Elbow, Conduit 1/2” X 45 K49306 - 1
7 Expansion Union (Conduit) N16289-20 - 2
