PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010 Page 91
Pulse-out/RS-485 Option Retail Cables
Pulse-out/RS-485 Option
Note:
Part Description Current Part Previous Part
DC Power Cable and Conduit Assembly, Pulse-out/RS-485 M05189A004 -
Valve Feed Cable, Pulse-out M03624A002 -
Relay Adapter Cable, Pulse-out M05963A001 -
Reg/Logic Cable Assembly (1) R17995-G7 -
Reg/Logic Cable Assembly (2) R17995-G8 -
Pump Handle Cable M05719A001 -
1 - Used with Pulse-out, Pulse-out and PPP, or Pulse-out and ATC.
2 - Used with Pulse-out, PPP and ATC.
Refer to MDE-4334 Atlas Series Start-Up/Service Manual for cable block diagrams.

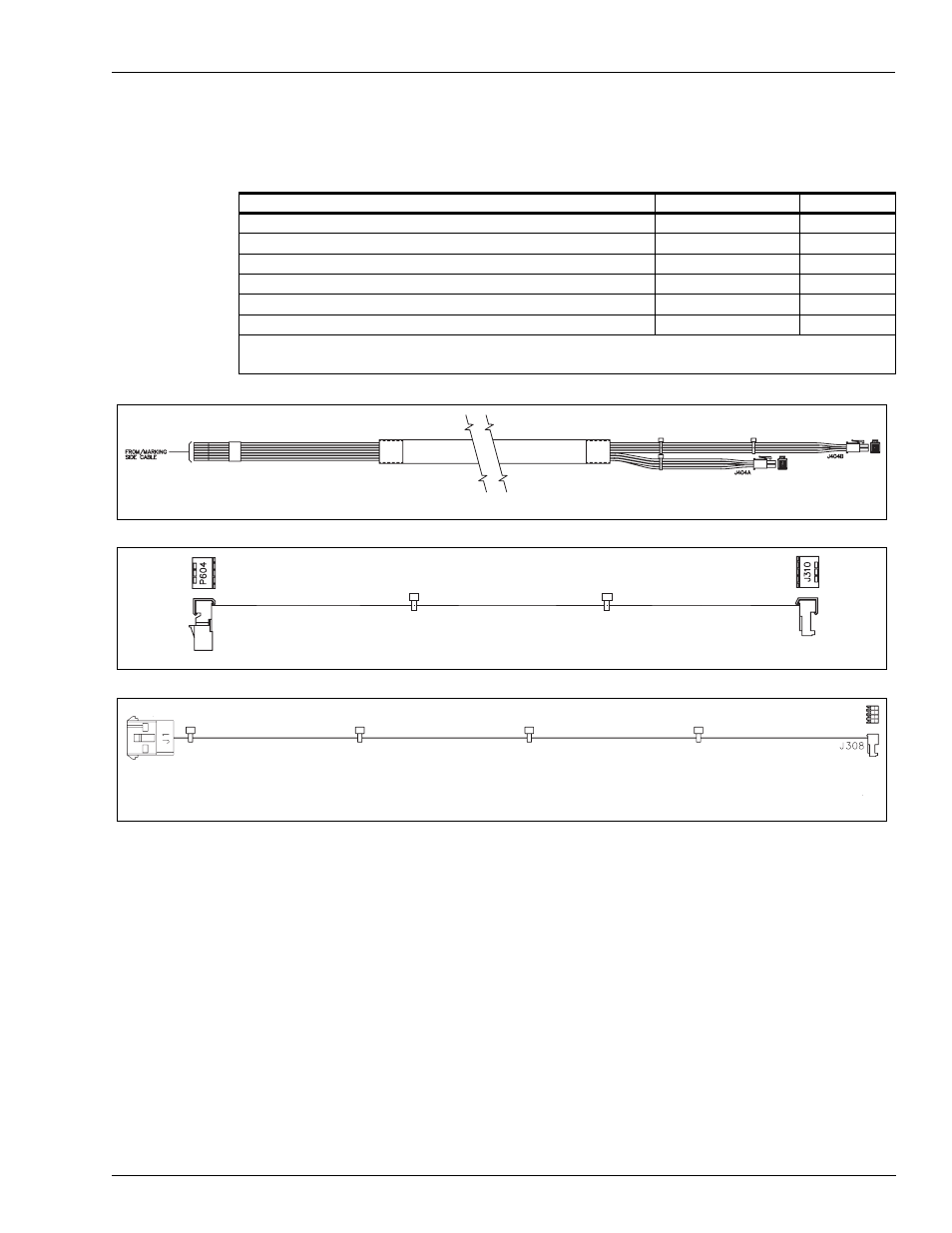

M05189A004
M03624A002
M05963A001
