Ultra-Hi Meter and Pulser Section Meter and Pulser Assembly
Page 126 PT-1949D Gasboy Atlas™ Pump and Dispenser Illustrated Parts Manual · March 2010

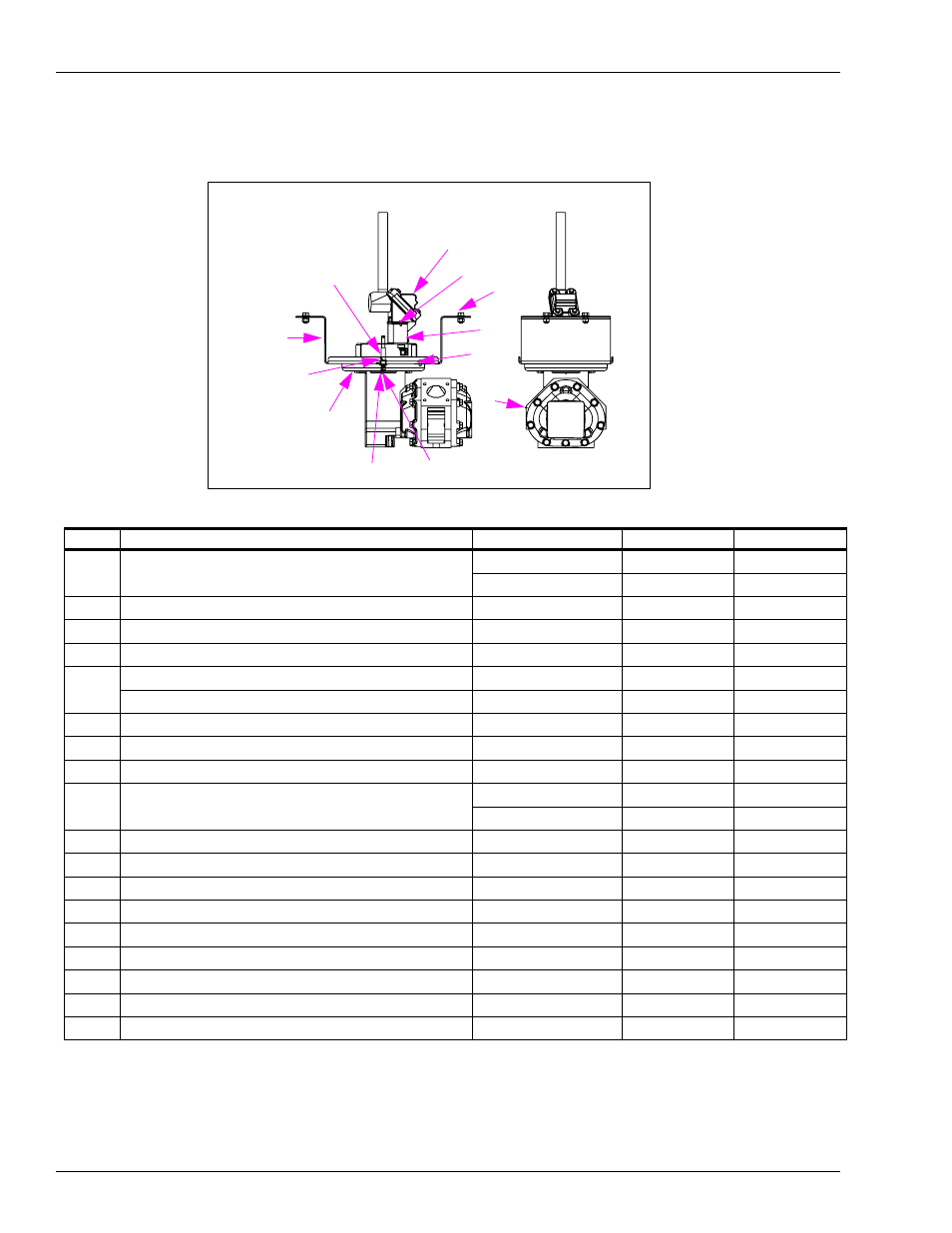

Meter and Pulser Assembly
6, 16, 3
2
9
10, 17
1
11
13, 8
5
12
7
4
14
Item # Part Description Current Part Previous Part Quantity
1 Assembly Pulser Conduit M05689A001 - 1
M05689A002 (see note) - 1
2 Bearing, Flange 011948 - 1
3 Bolt Hex HD Finished 1/4-20 X 1.25 K01914-28 - 4
4 Coupling Drive 022073 - 1
5 Gear Train Assembly 9850A (Gal) 028212 - 1
Gear Train Assembly 9850A (Liters) 028211 - 1
6 Nut, Hex 1/4-20 K01941 - 4
7 Meter, Liquid Controls T18767 - 1
8 Nut Hex w/Ext Lock Washer 5/16-18 THD Q12068-06 - 4
9 Platform, Meter M05542B001 - 1
M05542B002 (see note) - 1
10 Retaining, Meter K76238-37 - 2
11 Screw, PPMD TMD Forming 6 - 32 X 0.38 Q11769-15 - 2
12 Screw, PPMD Type F Thd Cutting 8 - 32 X 0.25 053017 - 4
13 Screw, Hex Screw Flng Hd 5/16 - 18 X 0.62 Q10253-02 - 4
14 Shaft - 9850 Pulser 054033 - 1
15 Spirol Pin Q10038-26 - 1
16 Washer Spring Lock 1/4 in K73278-29 - 4
17 Washer SS N16599-124 - 2
18 Gear, Spur 60T 028202 - 1
Note: This part is for 9850KXTW1. Units built after August 2007.
