HEIDENHAIN MANUALplus 4110 515
9.5 ICP Example "Milling Cy
cle"
Checking the ICP milling cycle (finishing)

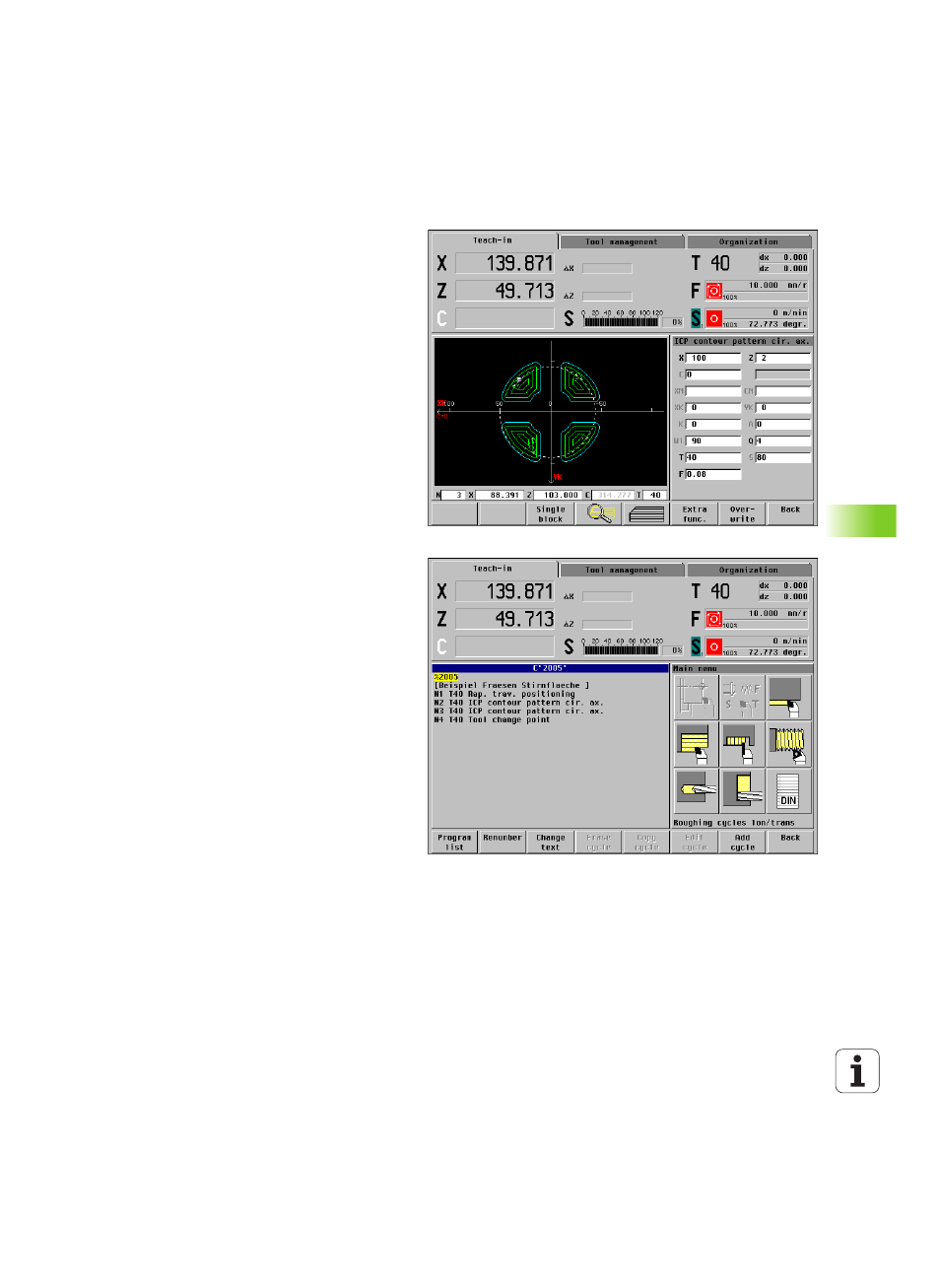

With the graphic simulation function, you can check
the execution of the ICP milling (finishing) cycle
(Graphics soft key).
You can then transfer the cycle to the cycle program
with Save or Overwrite.
Cycle program "ICP milling example"
Besides the ICP cycles, the created cycle program
also includes the positioning cycles for tool change
(see figure to the right).
Functions of the cycles:
„ N2: Pocket milling—Roughing.
„ N3: Pocket milling—Finishing.
„ N4: Position the tool for removing the workpiece.
