13-3

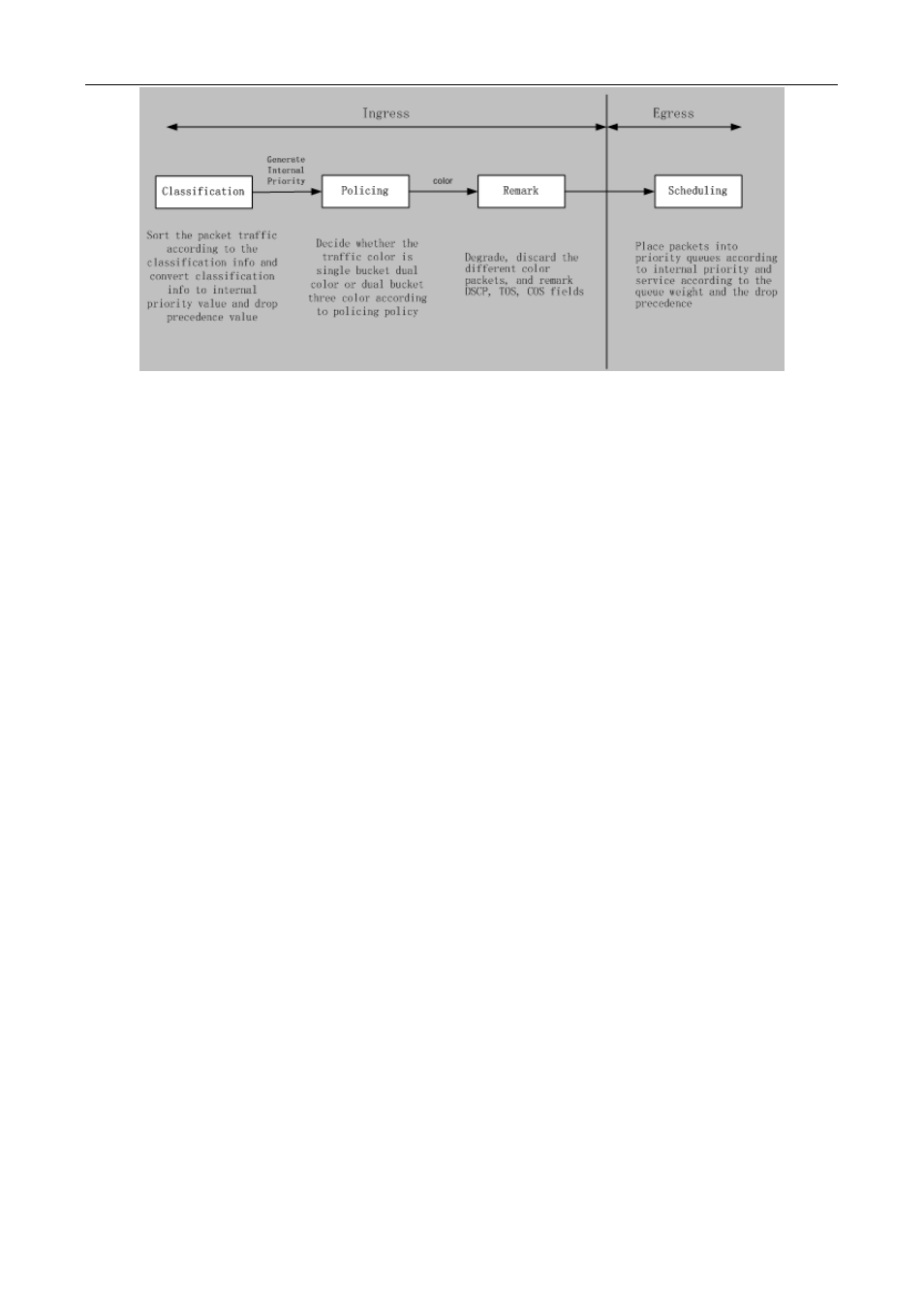

Figure 13-3 Basic QoS Model
Classification: Classify traffic according to packet classification information and generate internal priority and
drop precedence based the classification information. For different packet types and switch configurations,
classification is performed differently; the flowchart below explains this in detail.
