Start Here MVI56-103M ♦ ControlLogix Platform
User Manual IEC 60870-5-103 Master Communication Module
Page 16 of 152 ProSoft Technology, Inc.
February 22, 2013

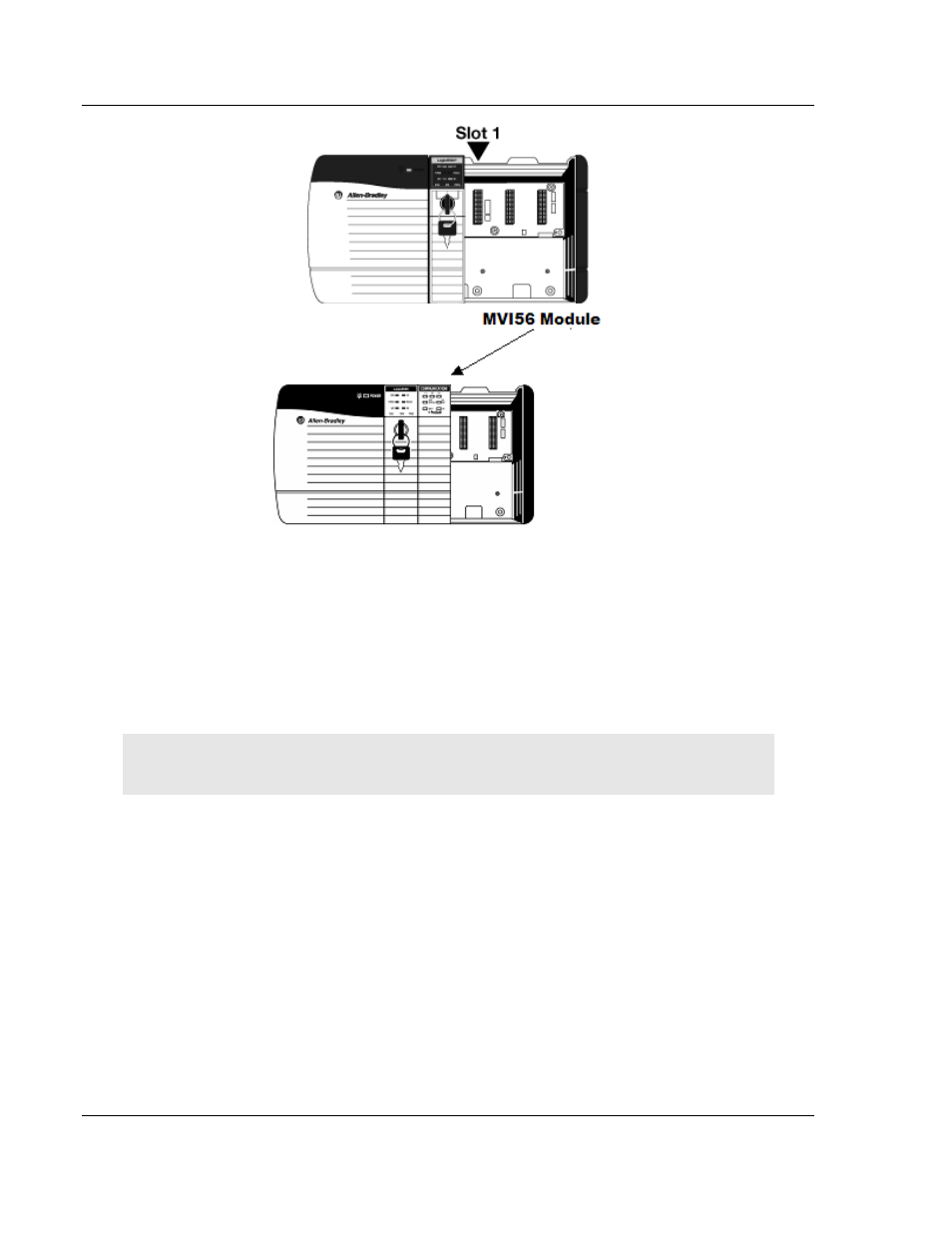

3 With a firm but steady push, snap the module into place.
4 Check that the holding clips on the top and bottom of the module are securely
in the locking holes of the rack.
5 Make a note of the slot location. You must identify the slot in which the
module is installed in order for the sample program to work correctly. Slot
numbers are identified on the green circuit board (backplane) of the
ControlLogix rack.
6 Turn power ON.
Note: If you insert the module improperly, the system may stop working, or may behave
unpredictably.
