Configuring the MVI56-103M Module MVI56-103M ♦ ControlLogix Platform
User Manual IEC 60870-5-103 Master Communication Module
Page 50 of 152 ProSoft Technology, Inc.
February 22, 2013

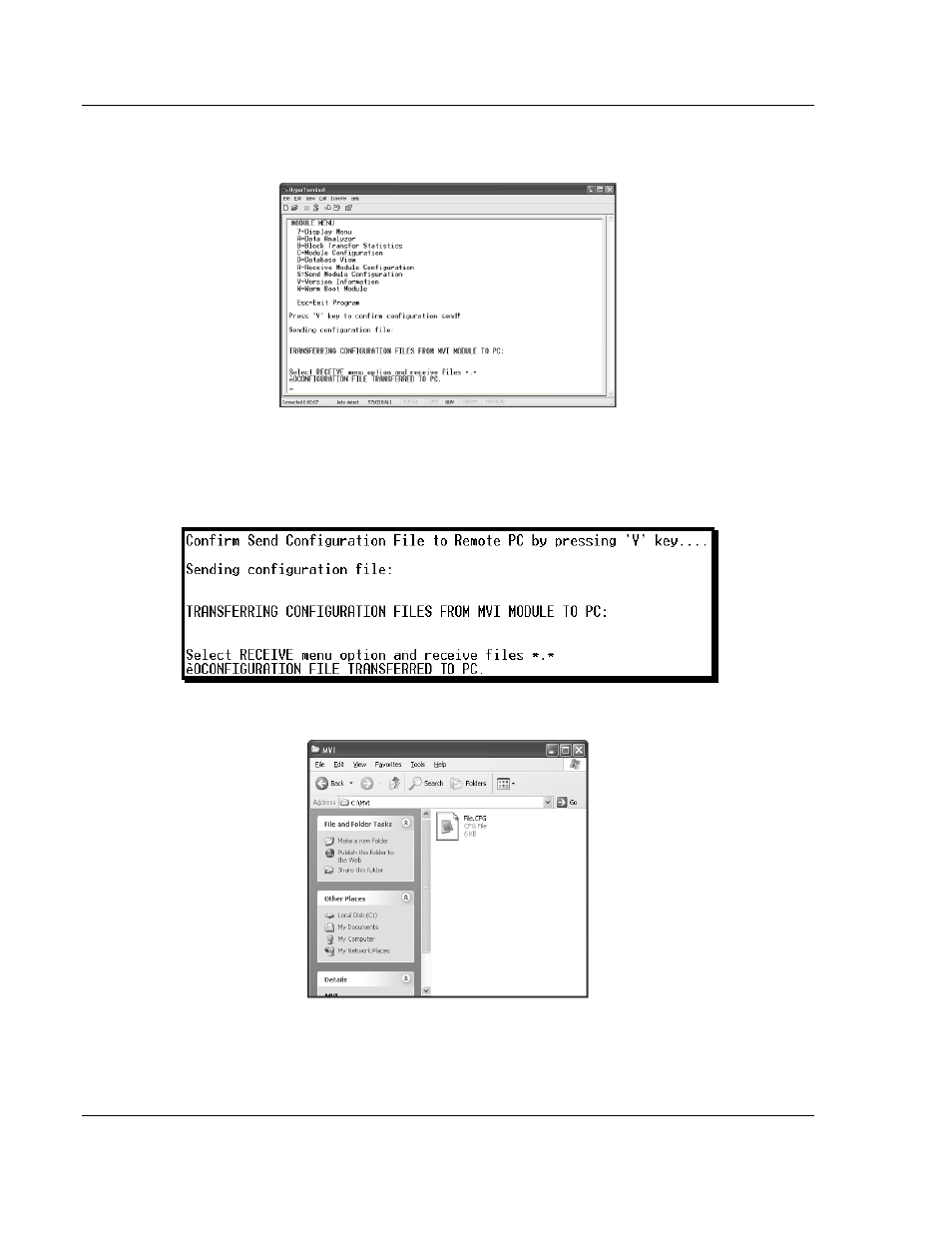

4 Press [S] (Send Module Configuration), and then press [Y] to confirm the
transfer.
The file transfer will then begin automatically, using the protocol and location
you specified in Step 3.
When the configuration file has been transferred to your PC, the dialog box
will indicate that the transfer is complete.
The configuration file is now on your PC at the location you specified.
5 You can now open and edit the file in a text editor such as Windows Notepad.
(page 25) When you have finished editing the file, save it and close Notepad.
