MODEL
4
Installation and Operations Manual
Front panel

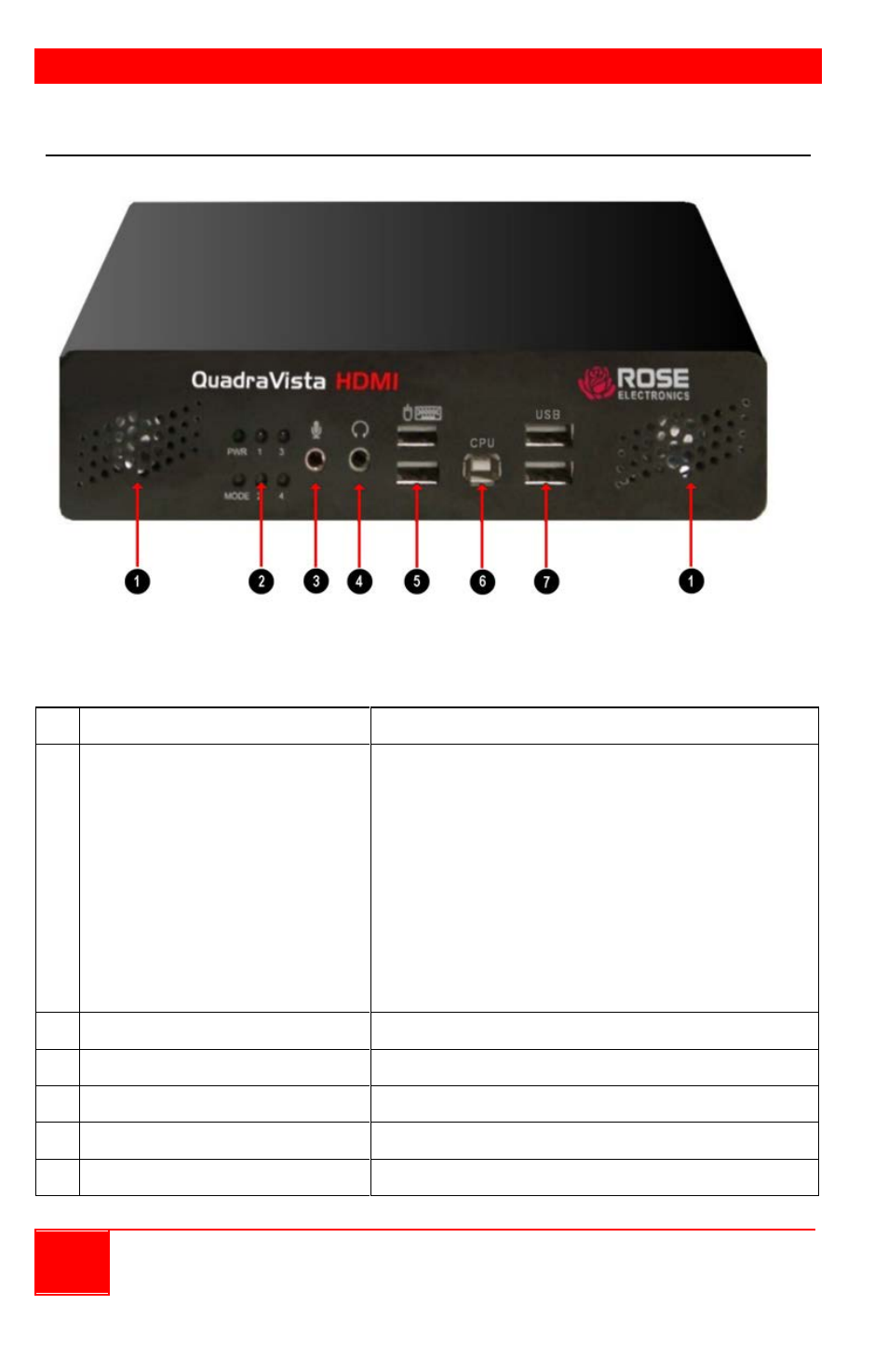

Figure 1. Front View
1
Stereo Speaker
Audio from the selected computer
2
Indicators
PWR
MODE
1,2,3,4
Green - unit is ON
Green – Local keyboard/mouse control
Yellow – Remote computer control
Green – Computer operated remotely
Yellow – Computer in Standby state
Yellow Blinking – Computer powered off
or rebooting
3
Microphone
For connecting a microphone
4
Headphone
For connecting a headset
5
USB HID
For connecting a keyboard and mouse
6
USB to remote computer
For controlling with a remote computer
7
USB 2.0 ports
For a USB 2.0 hub, USB flash disk, etc.
