Installation and Operations Manual
5
Rear View

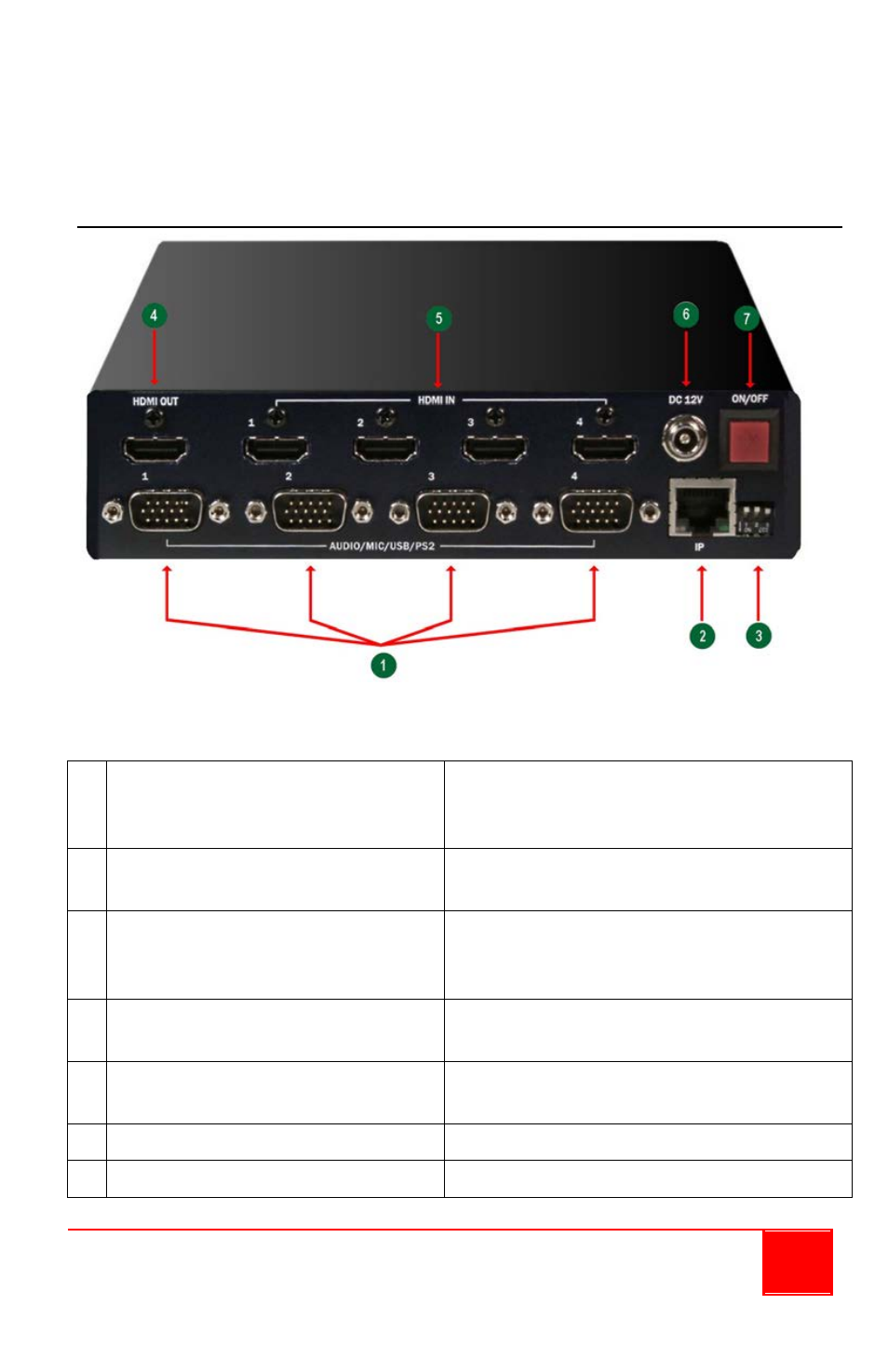

Figure 2. Rear View
1 HD15 connector to computers
Connects to 4 computers’ USB, PS/2,
and audio using special all-in-one
cable
2 IP Connector
Ethernet connector for IP control; up
to two remote computers via router.
3 Dip Switches
For updating the USB Host controller
firmware, as well as resetting the unit
to the factory default settings.
4 HDMI Output
Connect the monitor display’s HDMI /
DVI signal cable.
5 HDMI Inputs
HDMI connectors for HDMI / DVI
(YPbPr) inputs from computers.
6 Power Connector
Connects to the power adapter.
7 On / Off switch
Turns the unit’s power ON and OFF.
