TASCAM MMR-8/MMP-16 Owner’s Manual
•
Version 3.1 Update 133
Appendix D: MMP-16 Cable Information

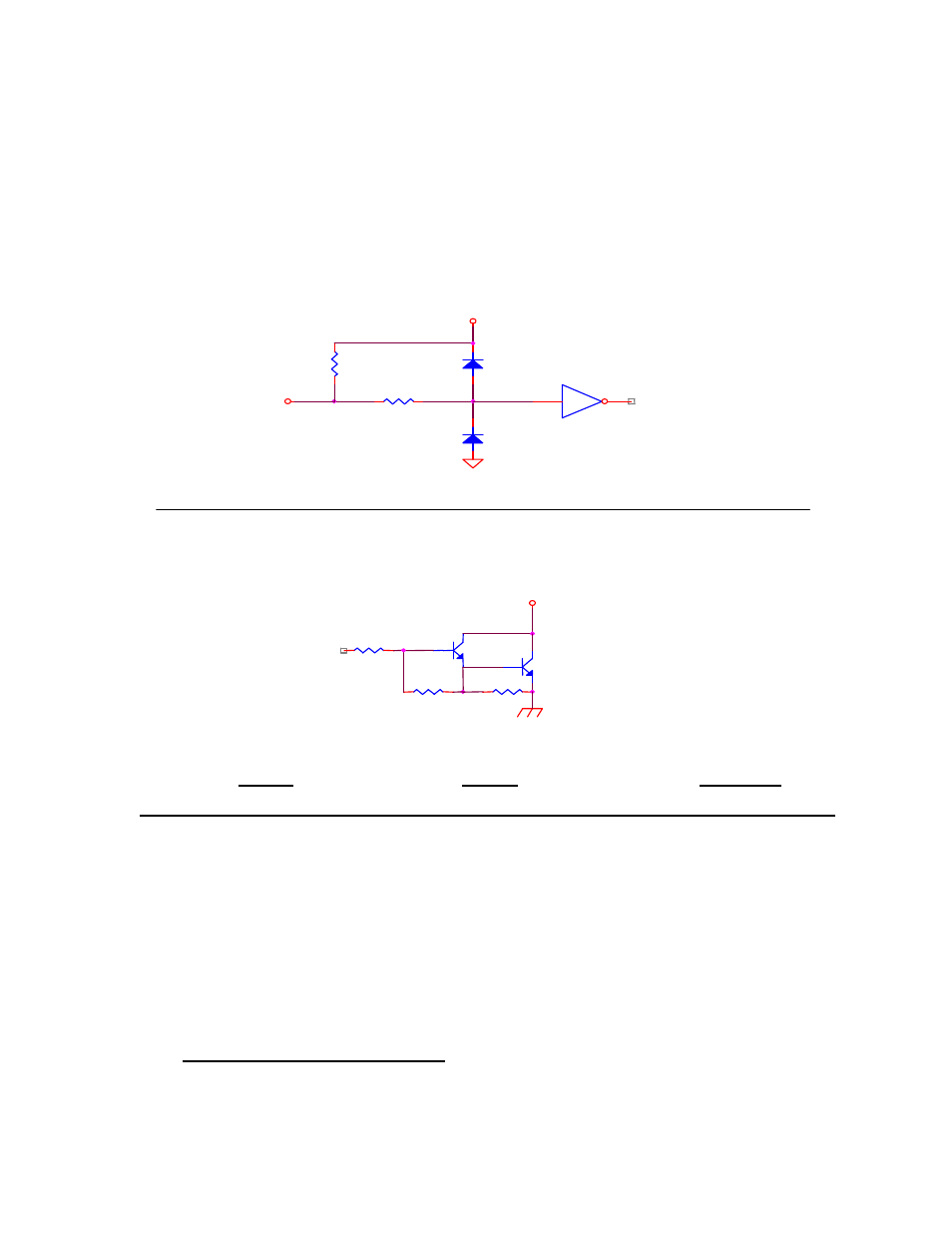

Parallel Tracks and Parallel Transport Connector Pinout
Connectors are 37-pin D male. I/O on connectors share same logical ground. Electrical characteristics are:
VCC
INPUT PIN
OUTPUT PIN
(+5V)
DARLINGTON OUTPUT STAGE OF ULN2803A
MAX RATINGS: 50V @ 500MA
TYPICAL INPUT
TYPICAL OUTPUT
10K
10K
74HC14
1 2
2.7K
7.2K 3K
Tracks Tracks Transport
Switch Tally Switch Tally Switch Tally
1. Record ON
2. Record OFF
Locked 28.
1. Trk 1 Input 21. 9. Trk 1 Rec 29. 9. Online 29.
2. Trk 2 Input 22. 10. Trk 2 Rec 30. 10. Rewind 30.
3. Trk 3 Input 23. 11. Trk 3 Rec 31. 11. Rev Play 31.
4. Trk 4 Input 24. 12. Trk 4 Rec 32. 12. Stop 32.
5. Trk 5 Input 25. 13. Trk 5 Rec 33. 13. Play 33.
6. Trk 6 Input 26. 14. Trk 6 Rec 34. 14. FFwd 34.
7. Trk 7 Input 27. 15. Trk 7 Rec 35. 15. Record 35.
8. Trk 8 Input 28. 16. Trk 8 Rec 36. 16. Preview * 36.
Pins Common to Both Connectors
19. +12VDC 20. GRD 37. GRD
*When preview is grounded, all record functions will invoke rehearse.
