Unit 232 Face Milling

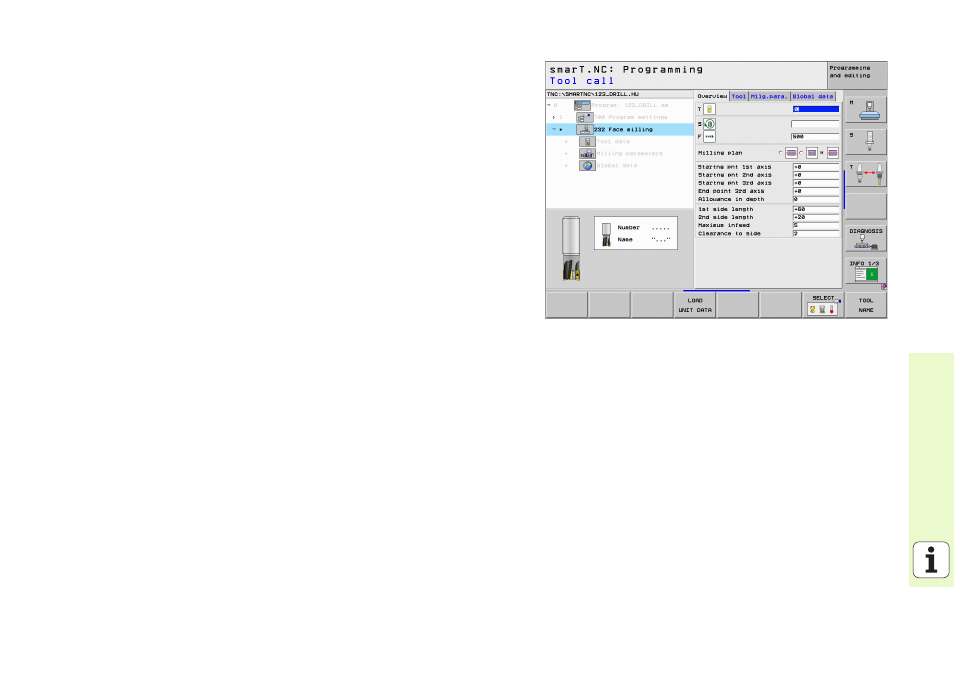

Parameters on the overview form:
 T : Tool number or name (switchable via soft key)
 S : Spindle speed [rpm] or cutting speed [m/min or ipm]
 F : Feed rate for plunging [mm/min] or FU [mm/rev] or FZ [mm/tooth]
 Milling plan : Selection of the milling plan
 Starting point in 1st axis : Starting point in the reference axis
 Starting point in 2nd axis : Starting point in the auxiliary axis
 Starting point in 3rd axis : Starting point in the tool axis
 End point in 3rd axis : End point in the tool axis
 Allowance in depth : Finishing allowance for the depth
 1st side length : Length of the surface to be milled in the reference
axis, referenced to the starting point
 2nd side length : Length of the surface to be milled in the auxiliary axis,
referenced to the starting point
 Maximum infeed : Maximum infeed per cut
 Clearance to side : Lateral distance by which the tool moves beyond
the surface
