45
Definin
g
Machining Operations

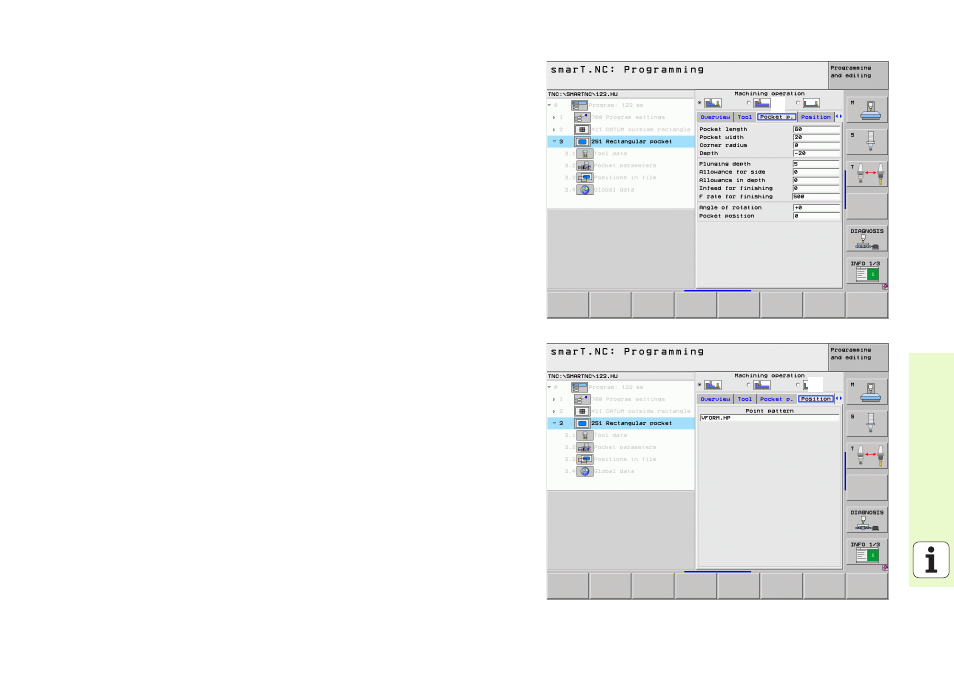

Optional parameters detail form (
4
)
On the optional parameters detail form you can define additional
machining parameters which are not listed on the overview form, such
as decrements for drilling or pocket lengths for milling.
Positions detail form (
5
)
On the positions detail form you can define additional machining
positions if the three machining locations on the overview form do not
suffice. If you define machining positions in point tables, then both the
overview form and the positions detail form only show the names of
the point table files (see “Defining Machining Positions” on page 145.)
1
4
1
5
