158
Definin
g Machining Po
sitions

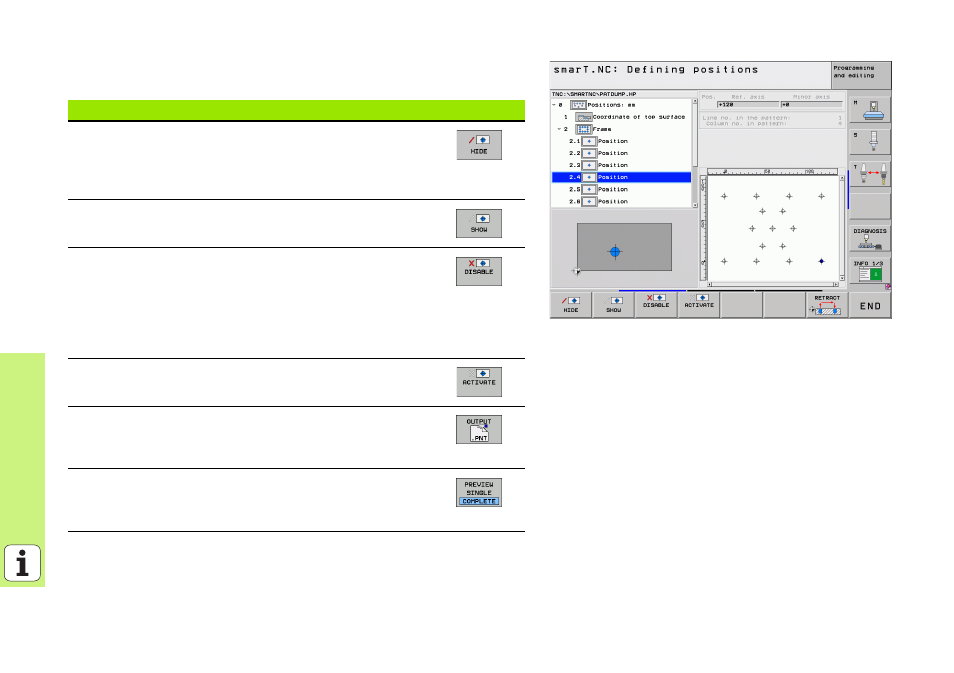

Functions of the pattern generator
Function Soft key
Hide the pattern or position selected in the tree view for
machining. Hidden patterns or positions are marked in the
tree view with a red slash, and in the preview graphics
with a bright red dot.
Reactivate a hidden pattern or position.
Disable the position selected in the tree view for
machining. Disabled positions are marked in the tree view
with a red x. smarT.NC does not display disabled positions
in the graphic at all. These positions are not saved in the
.HP file that smarT.NC creates as soon as you exit the
pattern generator.
Reactivate disabled positions
Exporting the defined machining positions to a PNT file.
Necessary only if you want to use the machining pattern
on older software levels of the iTNC 530
Show only the pattern selected in the tree view, or show
all defined patterns. smarT.NC shows the pattern selected
in the tree view in blue.
