Defining a pattern
Select via soft key the pattern to be defined
Define the required entry parameters in the form: select the next input
field with the ENT key or the arrow down key
Press the END key to save the entered parameters.

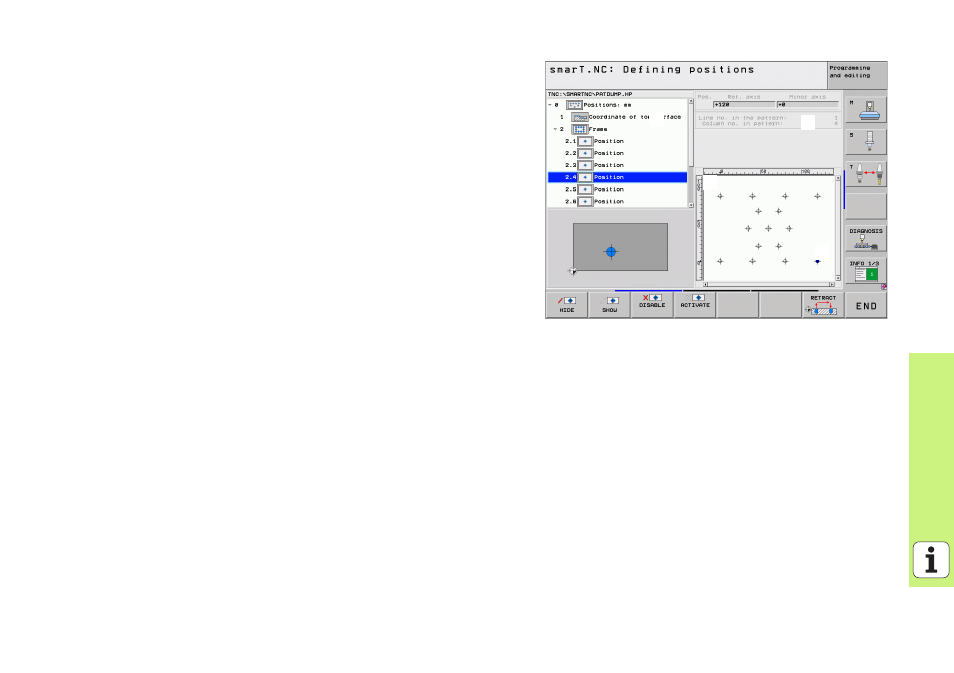

After you have entered a pattern via a form, smarT.NC displays this
pattern symbolically as an icon on the left side of the screen in the tree
view (
1
).
The pattern is displayed graphically in the bottom right quarter of the
screen (
2
) immediately after the entry parameters have been saved.
After opening the tree view with the right arrow key, you can select any
point within the pattern you have created with the arrow down key.
smarT.NC displays the selected point on the left in the graphic on the
right, marked blue (
3
). For informational purposes, the Cartesian
coordinates of the currently selected point are shown in the top right
quarter of the screen (
4
).
