Fun
damentals

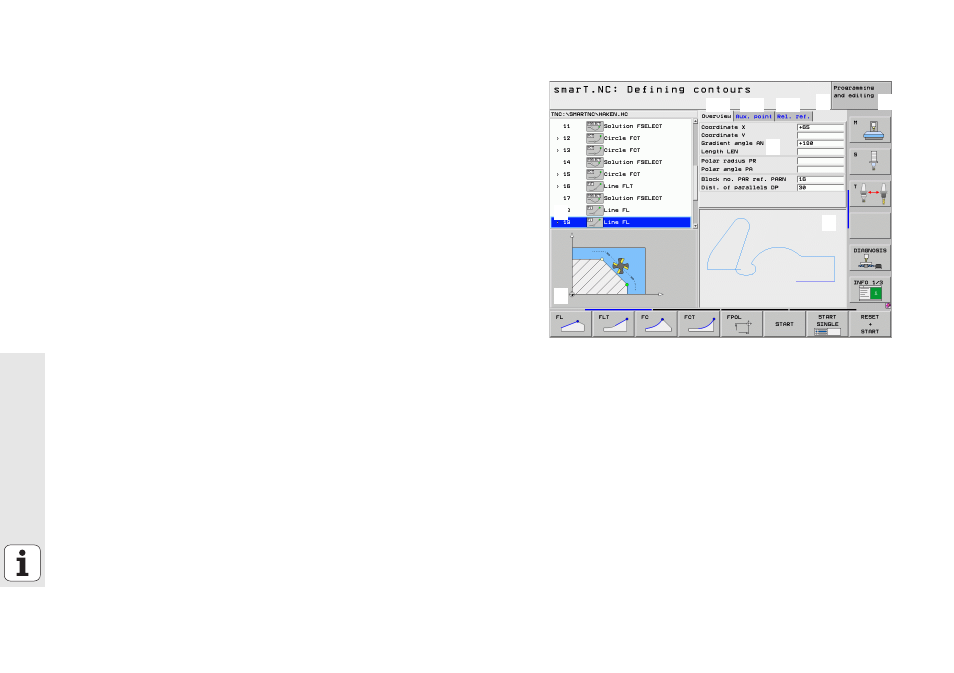

Editing contours
1
1
2
1
3
1
4
1
4.1
1
4.2
1
4.3
1
5
1
6
1
Header: Operating mode text, error messages
2
Active background mode of operation
3
Tree view in which the contour elements are shown in a structured
format
4
Form window with the various input parameters. In FK-programming
there can be up to four forms.
4.1
: Overview form
Contains the input possibilities used most often
4.2
: Detail form 1
Contains input possibilities for auxiliary points (FL/FLT) and for
circle data (FC/FCT)
4.3
: Detail form 2
Contains input possibilities for auxiliary points (FL/FLT) and for
auxiliary points (FC/FCT)
4.4
: Detail form 3
Only available for FC/FCT, contains input possibilities for relative
references
5
Support graphics window, in which the input parameter currently
active is displayed
6
Graphics window, in which the programmed contours are show
immediately after the form is saved
