Section 2 NAMES OF PARTS
2-2

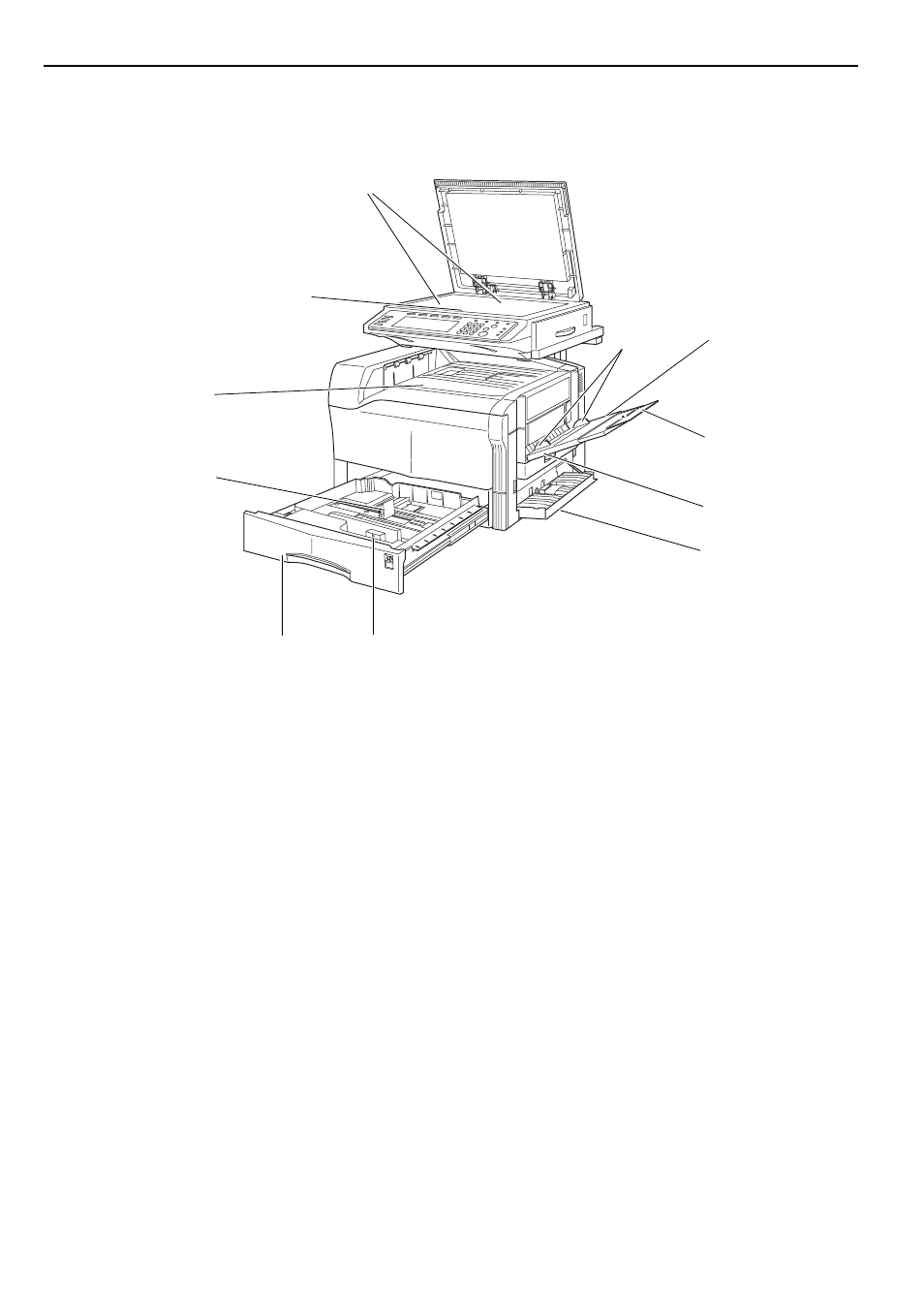

(16) Original size indicator plate
Be sure to align the original with this plate when setting an
original on the platen.
(17) Platen
Set originals here for copying. Lay originals face-down and
align them with the upper left corner of the platen (towards
the left-rear portion of the copier).
(18) Multi-bypass tray
Load the paper here when printing on to small-size paper or
special paper.
(19) Multi-bypass extension
Pull out this extension when copying onto 8
1/2
" × 11" [A4R]
size paper or larger.
(20) Insert guides
Align these guides to fit the width of the paper that is to be set
on the multi-bypass tray.
(21) Right cover
Open this cover if a paper misfeed occurs inside the copier.
(22) Drawer[Cassette] No.1 (in standard copiers [for 1-sided
copies only])
This drawer[cassette] has a storage capacity of 500 sheets of
copy paper.
Duplex Unit (in duplex copiers [for 2-sided copies])
This unit allows you to make duplex [2-sided] copies.
(23) Paper length guide release levers
Pinch these levers and adjust the guide plate to fit the length
of the paper that is to be loaded in that drawer[cassette].
(24) Paper width guide release levers
Pinch these levers and adjust the guide plates to fit the width
of the paper that is to be loaded in that drawer[cassette].
(25) Top tray
Finished copies can be ejected and stored on this tray.
(25)
