Modular Block System: Hydraulic Presses

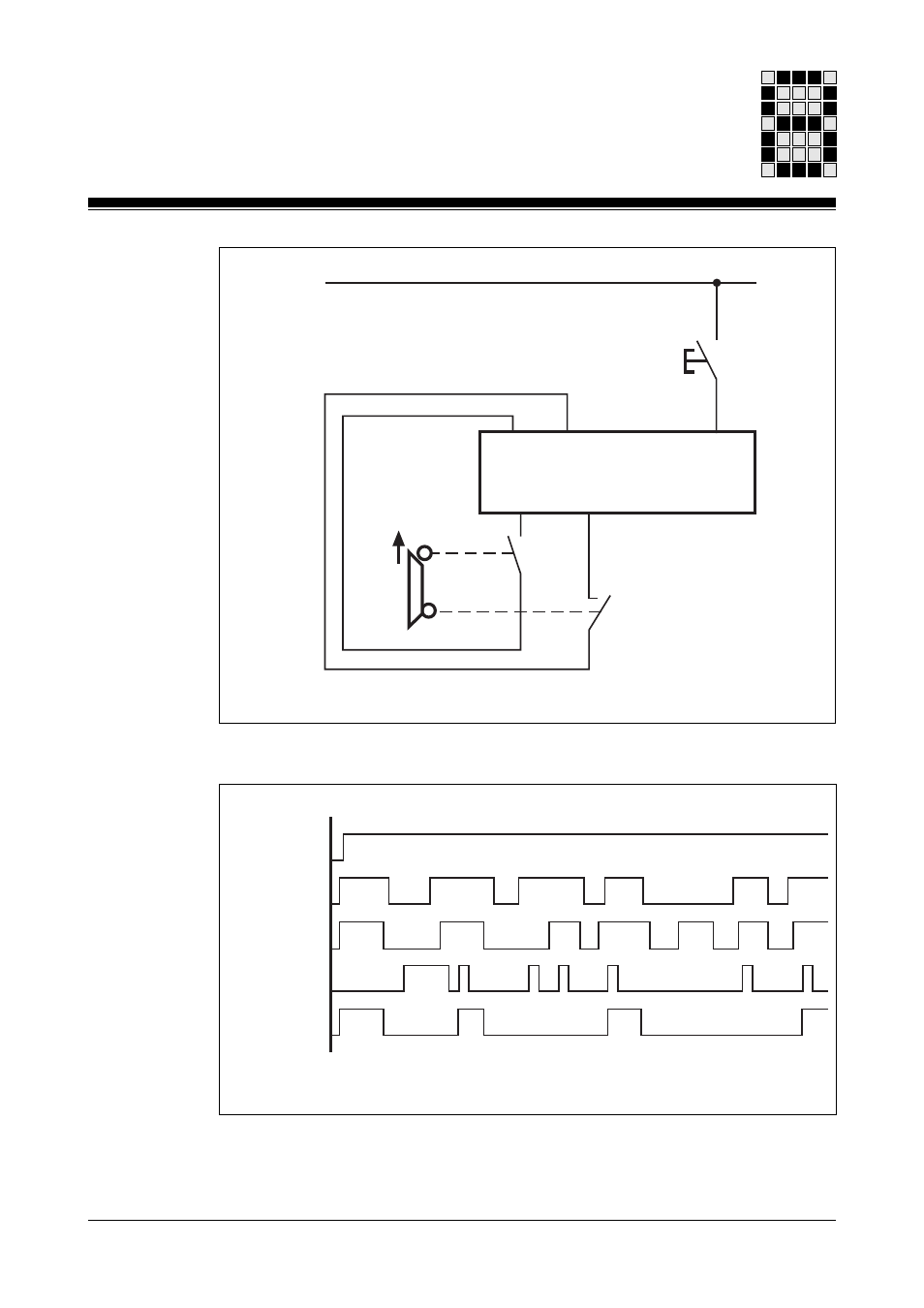

Fig. 8-18: Wiring diagram

Fig. 8-19: Timing diagram

PSS Start

E0.00

E0.01

E0.03

M80.00

1

1

1

1

1

24 V

Reset

E0.03

A1.00

E0.00

PSS

Close gate

A1.01

E0.01

Pulsed outputs
