114 Kayak HD — Installation and Service Manual
Section 3 — Configuration
Install - Genlock Menu

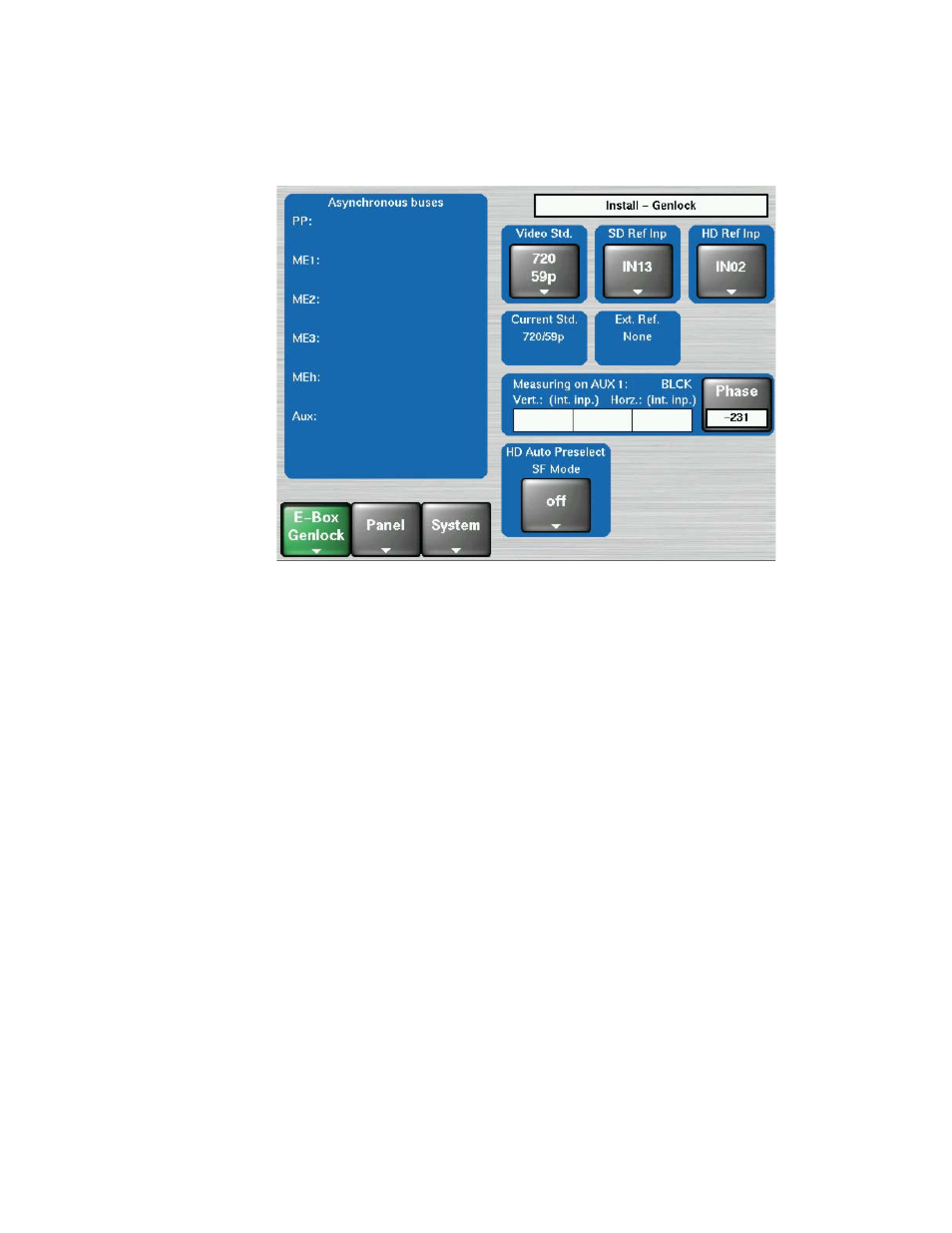

Figure 71. Install - Genlock Menu
The Install- Genlock menu reports the status of the sync regenerator of the
Kayak HD system, and is used to switch between HD and SD operating
modes and adjust input timing.
The selected video standard is reported in the Current Std. field. The Kayak
sync regenerator locks to an incoming reference signal and reports the line
standard it is regenerating in the
Ext. Ref. field.
That operating mode persists until a reference input different from the
current line standard is detected and locked to. If the reference signal is
temporarily lost, the Kayak system will continue to free run in that line
standard and a status of
NONE is reported.
Selecting the Video Standard
Data pad Video Std.
Choose the desired HD standard
8448_50_
r1
