Kayak HD — Installation and Service Manual 123
Install Menus Reference
Install - Machine Control Menu

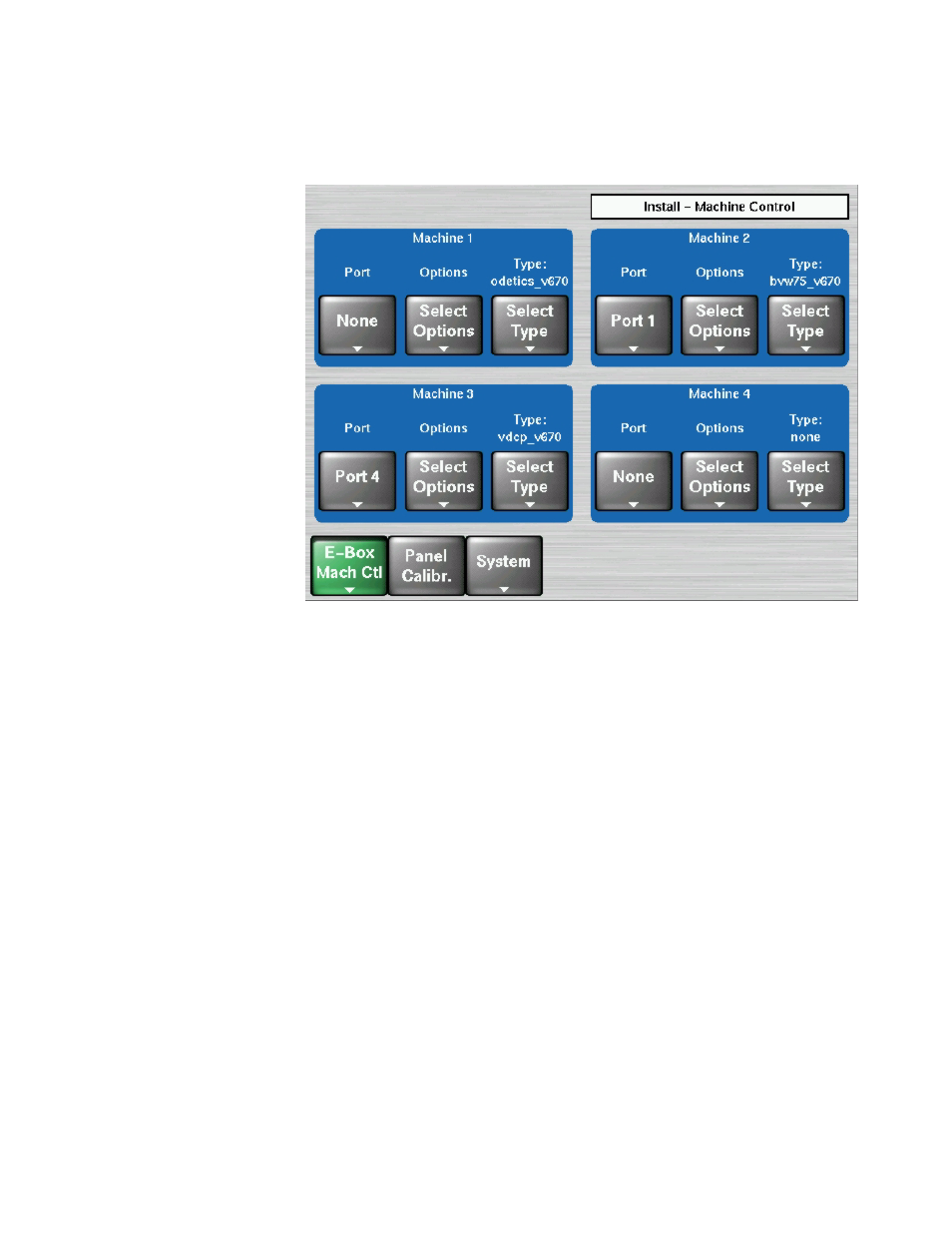

Figure 79. Install – Machine Control Menu
• Up to four external machines (VTR, Disc Recorders, Laserdisc Players)
can be connected via Port 1…8. The menu serves to set the respective
port numbers and protocol types.
• For some remote protocols configuration options are selectable (all
GVG200 based protocols, AMP, Odetics, VDCP, BVW75).
The options can be selected by pressing the Select Options button (see details
below).
• Select option and change value by pressing the Modify button.
