136 Kayak HD — Installation and Service Manual
Section 3 — Configuration

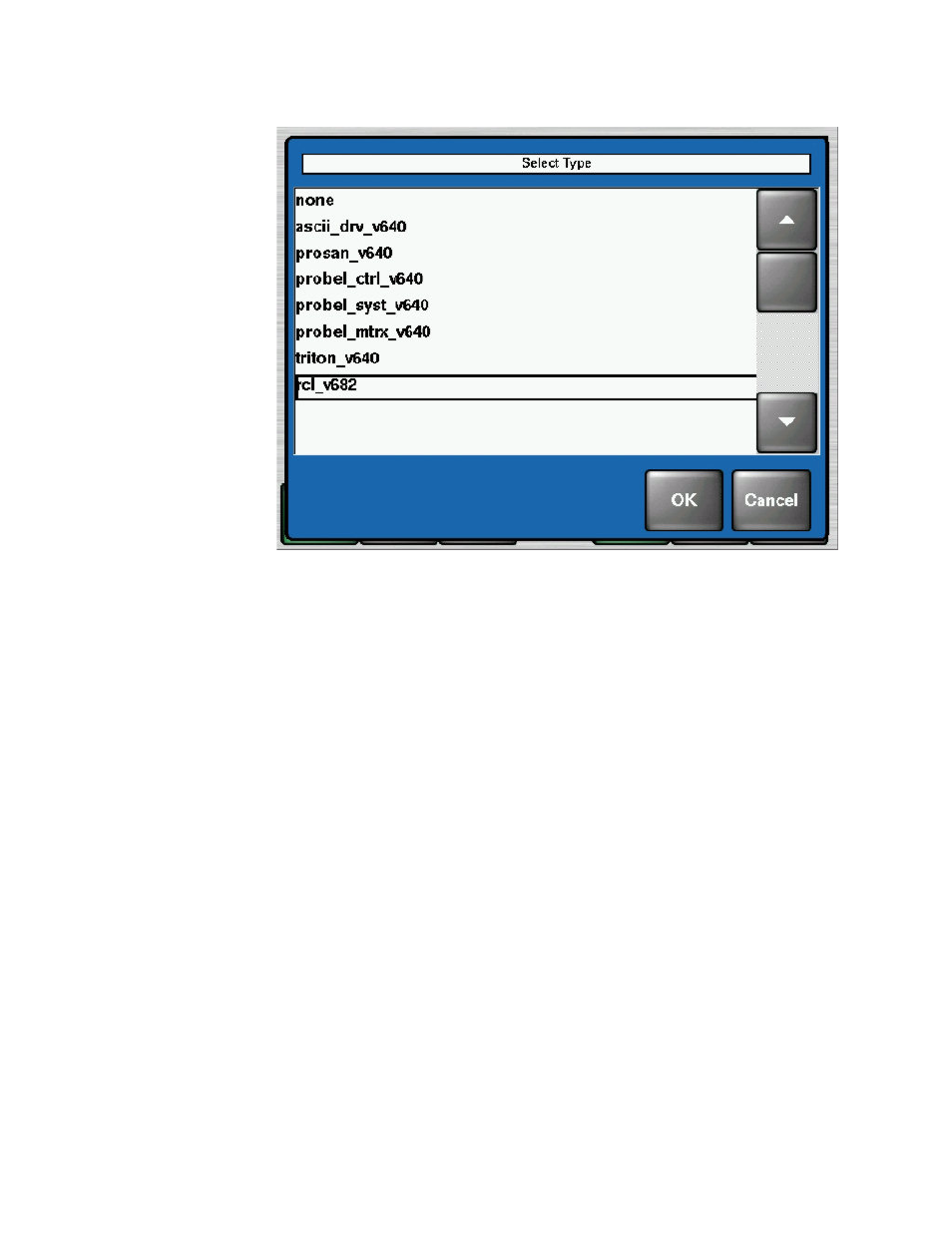

Figure 92. Install - Router - Select Type Menu
Note For Encore Router Control System select the “rcl_v682” protocol and touch
the OK button. (“rcl” = Router Control Language, “v682” = current software
version)
Selecting Options (RCL Only)
Touch the Select Options button in the Crosspoint Control pane to
access the options sub-menu. In this menu page the Encore areas and a
special operating mode can be selected.
Note Note Kayak's router control can address the Encore areas 1 to 39.
