Kayak HD — Installation and Service Manual
133
Install Menus Reference
Tally Mode
•
Red/Red: The LEDs of the UMD will signal a red tally.
•
Red/Yellow: The right LED will signal a red tally and the left LED will
signal a yellow tally.
•
Red/Off: The right LED will signal a red tally and the left LED is not
used.
On Air Display
Touching the
On Air
button switches the tally signalization on or off.
Reset
Touching the Reset button set the display assignment to default values.

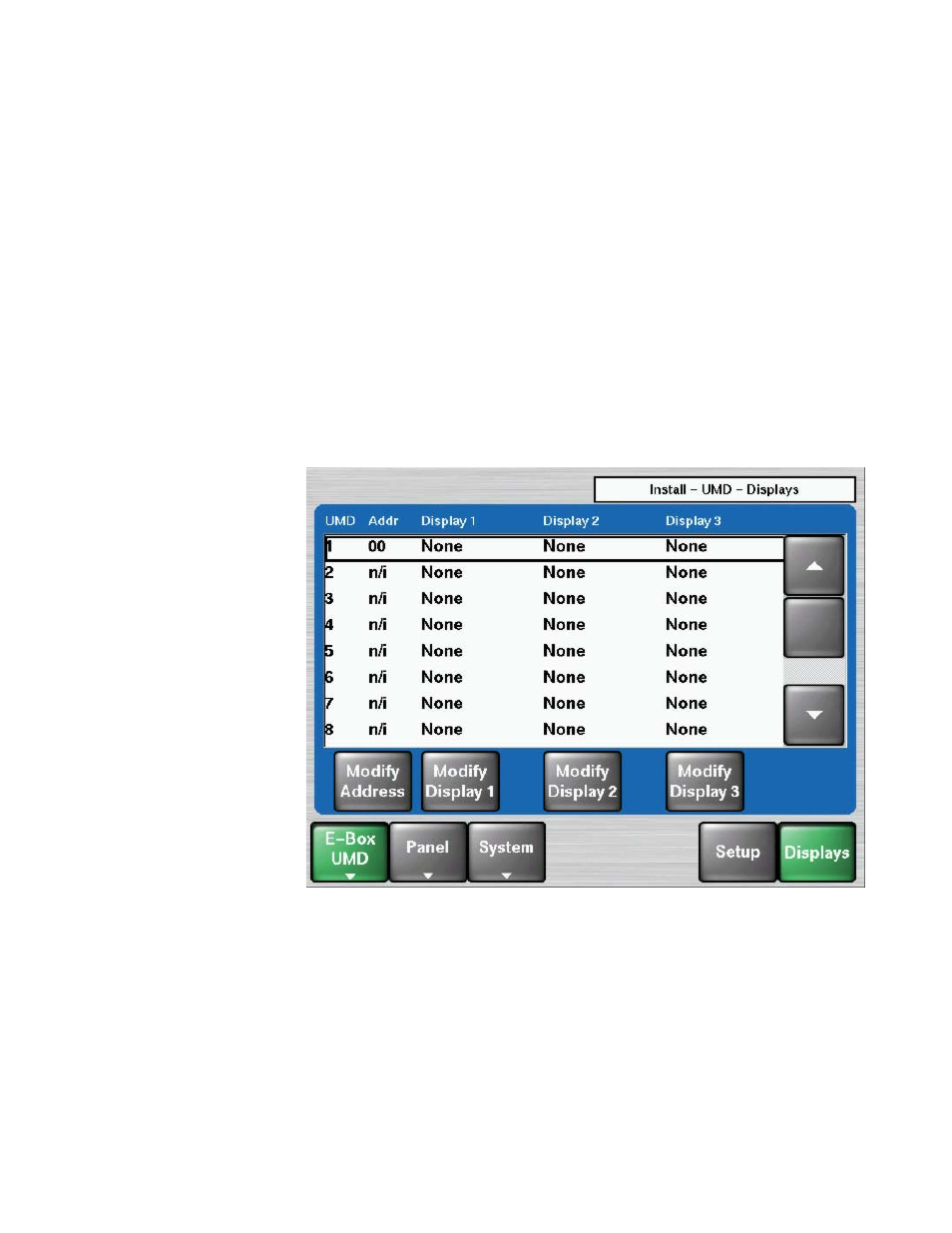

Figure 90. Install – Install UMD Display Menu
Modify Addresses
Select the device address (see the HEX switches on the rear panel of the
UMD devices). The UMD devices will use only the LSB of the physical
MPK addresses (which is a 32 bit address)
Valid range: 00 ... BF (FF disables the device handling = not installed).
For details refer to your Under Monitor Display manual.
