190 Kayak HD — Installation and Service Manual
Section 4 — Maintenance
3-M/E Control Panel FRUs

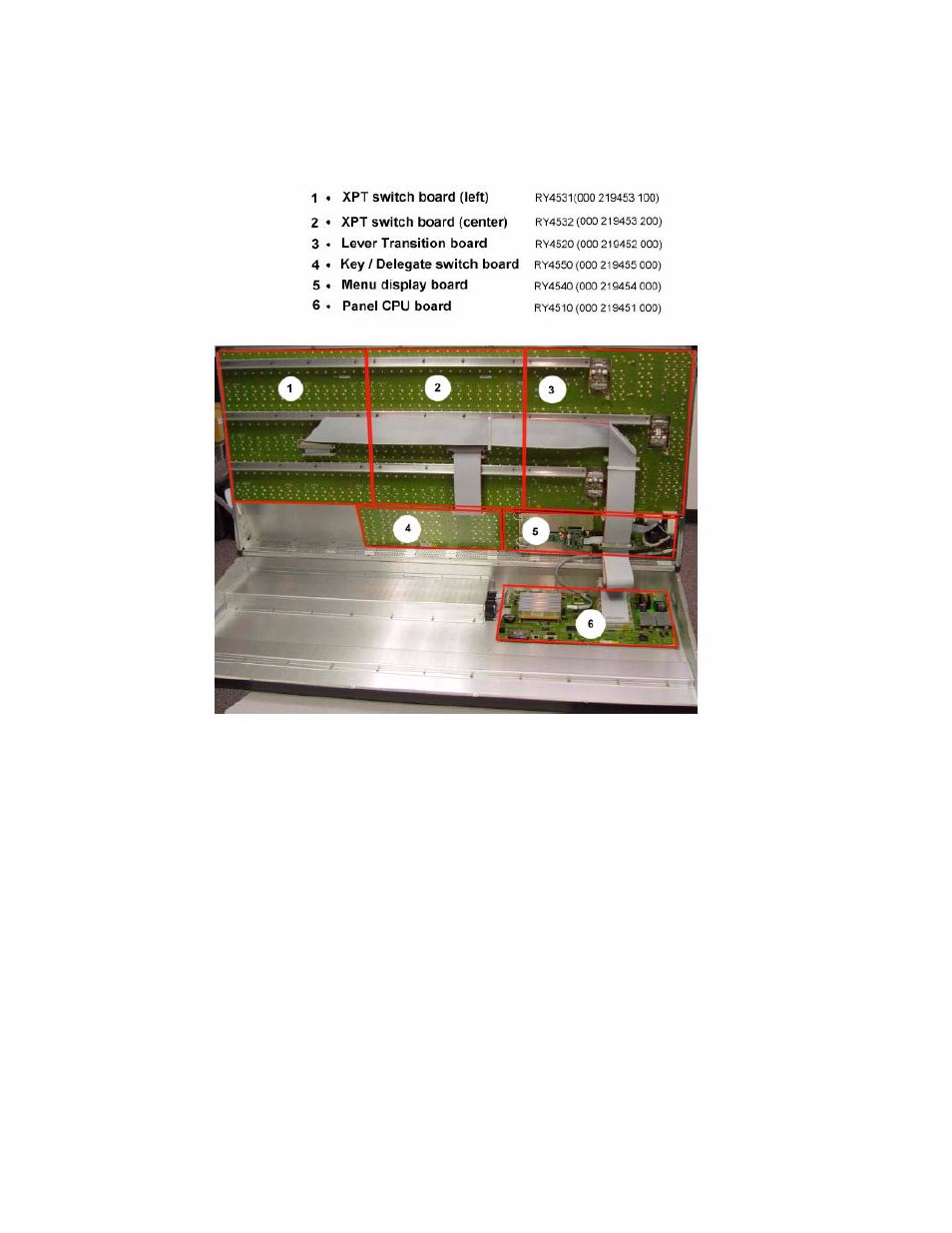

Figure 142. Kayak Control Panel—3-M/E Board Positions
Replacing the XPT Switchboard—Left (3-M/E only)
1. Disconnect the Ribbon Cable, as shown in Figure 143 .
2. Remove the three stiffeners across all boards, as shown in Figure 143 .
3. Remove all screws holding XPT Switchboard—Left to the Control
Panel enclosure.
4. Insert the new XPT Switchboard—Left referring to these instructions.
