Kayak HD — Installation and Service Manual 177
Additional Kayak Panel FRUs

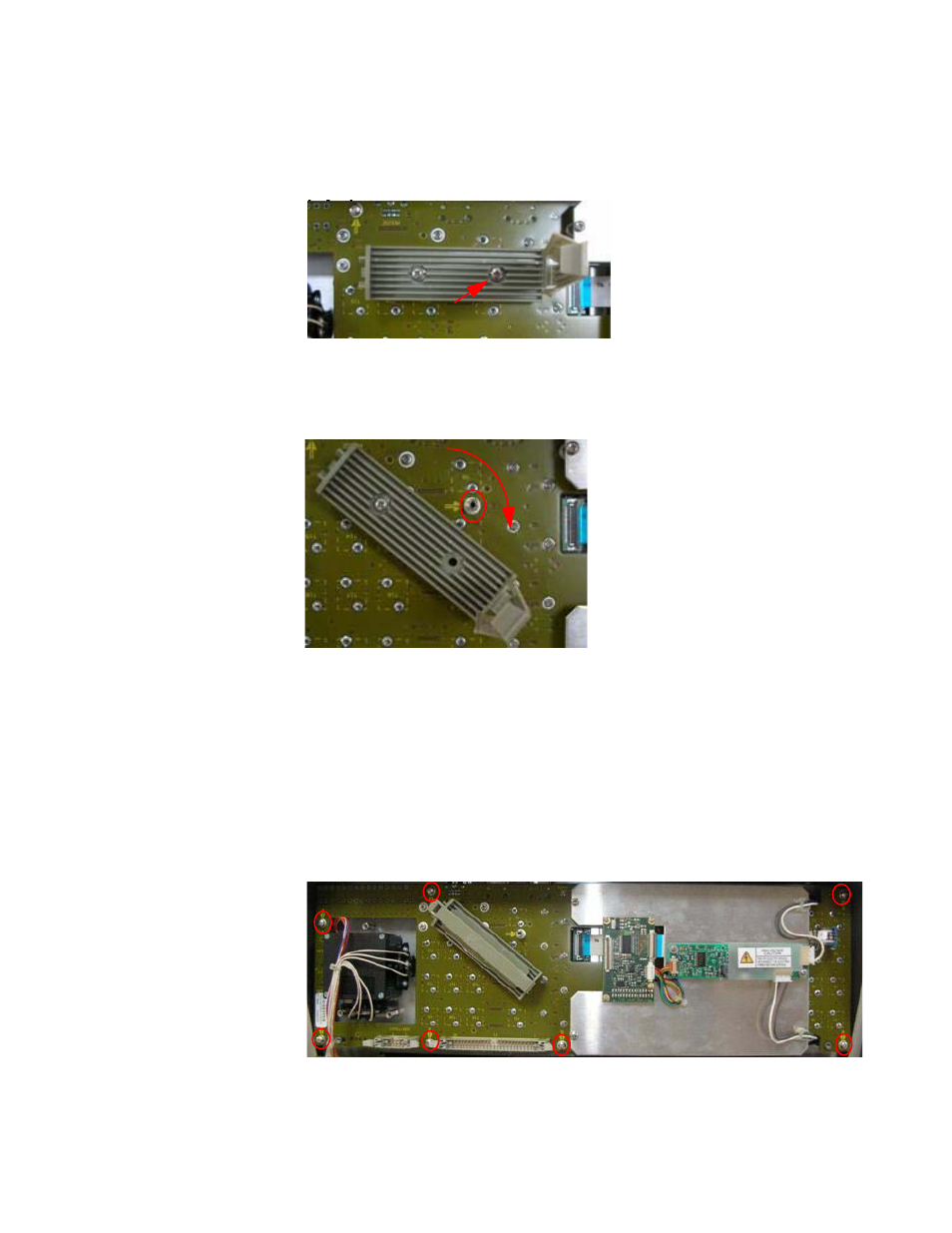

5. Remove the right screw from the ribbon cable guide on the Display
Board, as shown in Figure 126 .
Figure 126. Menu Display Board—Ribbon Cable Guide, Right Screw Removal
6. Pivot the ribbon cable guide 45 degrees, as shown in Figure 127 .
Figure 127. Menu Display Board—Ribbon Cable Guide, Hex Column/Pivot
CAUTION You may need to loosen the left-most screw on the ribbon cable guide if there
is resistance.
7. Remove the hex column revealed when the ribbon cable guide was
rotated, refer to Figure 127 .
8. Remove the seven screws fastening the board to the enclosure, as
shown in
Figure 128 .
Figure 128. Menu Display Board—Board to Enclosure Screw Removal
