Kayak HD — Installation and Service Manual 117
Install Menus Reference
Install - Editor Menu
Basic editor control of the Kayak HD system is supported. Capabilities
include: Source selection, Key selection, Wipe selection, Preview, Timeline
control (Jog/Go to Time, Run, Rewind), Transition Mode, Rate, and Trig-
gers, All Stop, E-MEM.

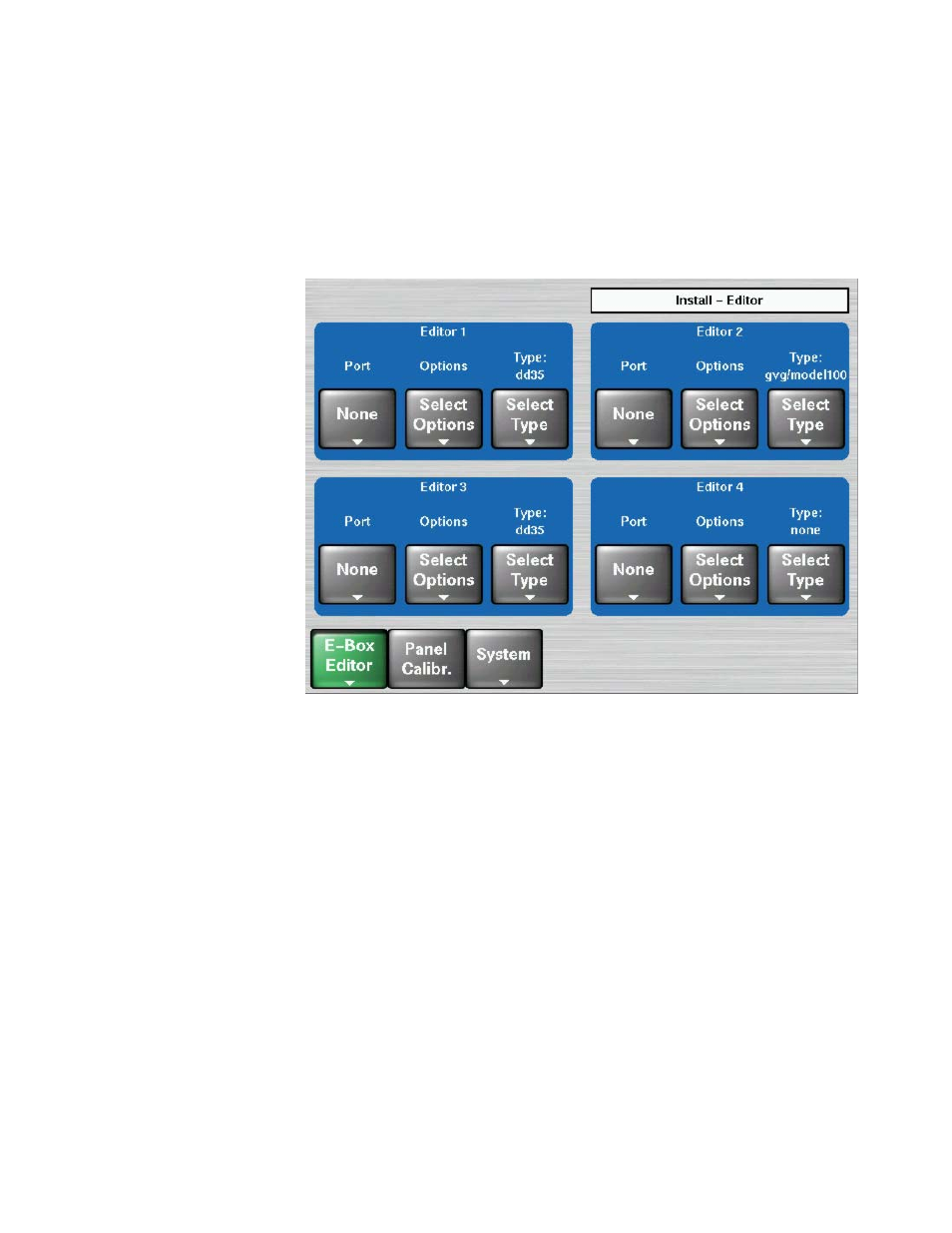

Figure 74. Install - Editor Menu
The Editor menu permits to configure the serial ports 1 … 8.
• Select Port # (Port 1 – 8)
• Select protocol type
• For some remote protocols configuration options are selectable.
• The options can be selected by pressing the Select Options button.
