26 Kayak HD — Installation and Service Manual
Section 1 — System Overview
System Components
Kayak HD Control Surfaces
Kayak HD Production Switcher systems use a control panel with an inte-
grated menu display (color TFT with touch-screen). The Sidepanel pro-
gram, which runs on a user-supplied Windows PC, can also be used to
control the Kayak HD system.
1 M/E Control Panel

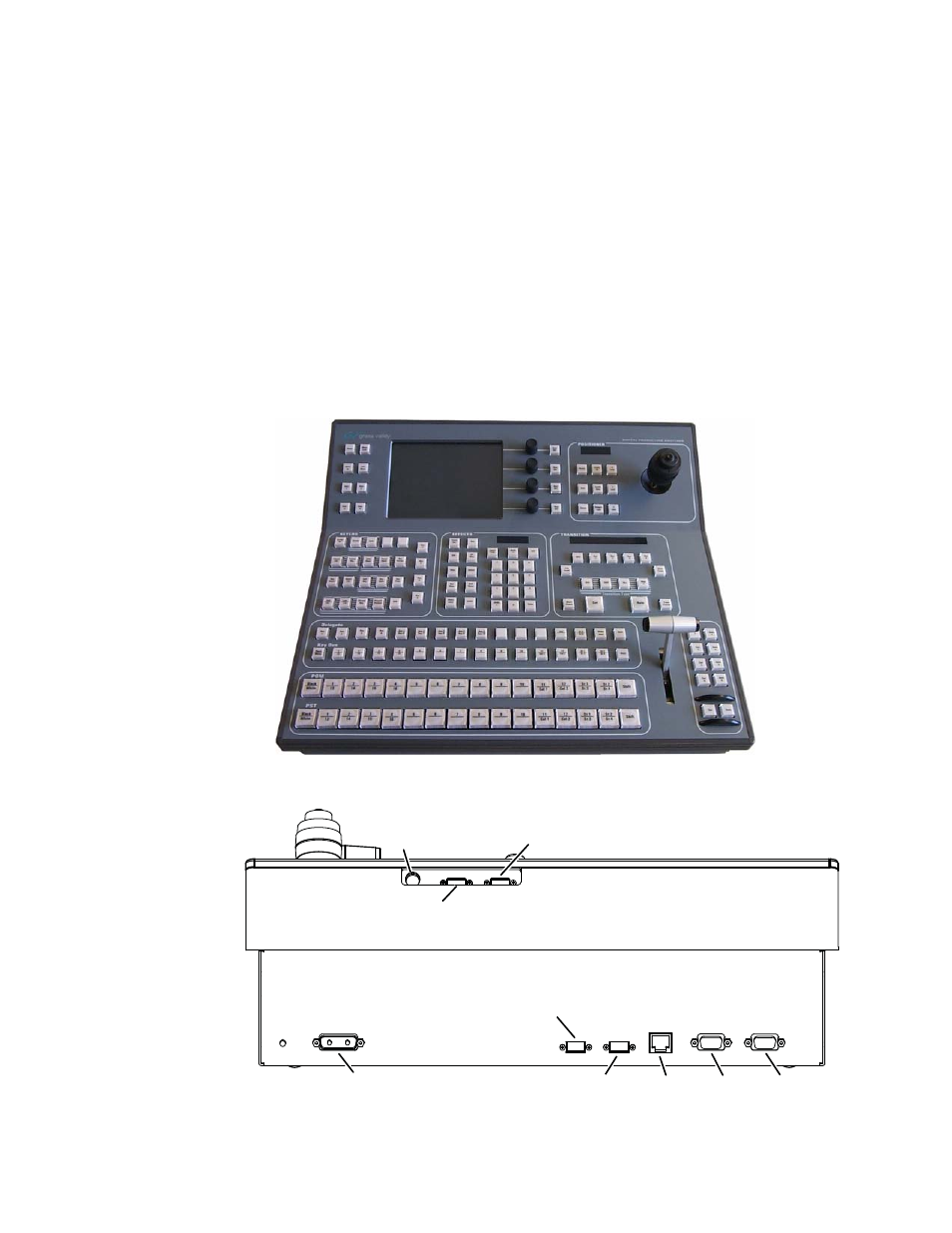

Figure 1. 1 M/E Control Panel, Top View
Figure 2. 1 M/E Control Panel, Rear View
PS/2 Port
48V DC Power In (from Frame) LAN RS 485 RS 232
8448_04_
r0
USB #4
USB #2
(Future use)
(Future use)
