116 Kayak HD — Installation and Service Manual
Section 3 — Configuration
Selecting the Video Reference Source
1. Data pad SD Ref Inp
2. Select desired genlock input type Analog or Digital
3. Data pad HD Ref Inp
4. Select desired genlock input type Analog or Digital
Example for HD Ref Input:

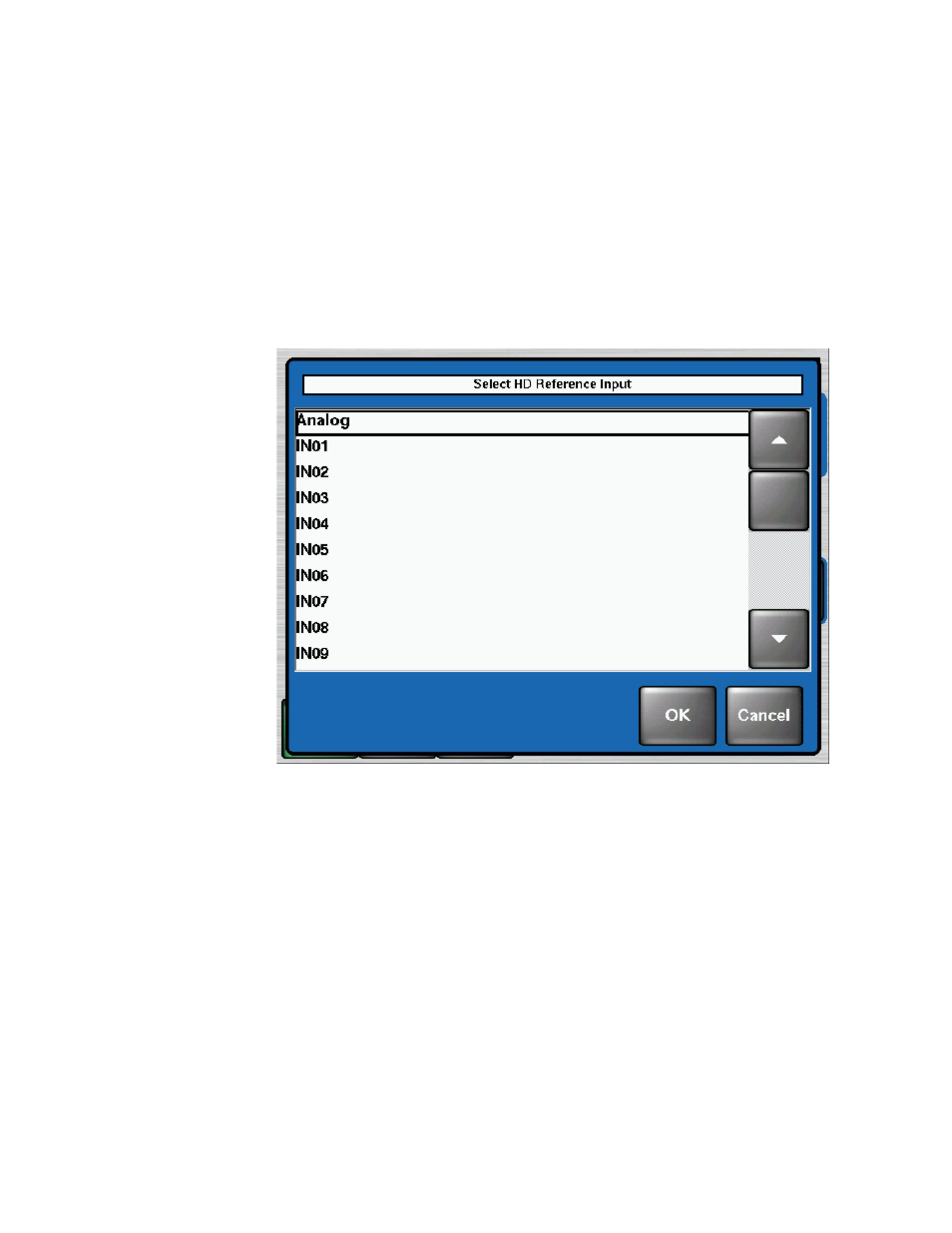

Figure 73. Install – Select Reference Input
Analog Analog Reference signal connected with jack HD
ANALOG
REFERENCE Used for synchronizing the switcher.
IN 01 … IN24 Selected input source is used for synchronizing the
switcher
