Kayak HD — Installation and Service Manual 195
Additional Kayak Panel FRUs
Replacing a 3-M/E Control Panel Fan
To replace a 3-M/E Control Panel Fan , complete the following steps:
1. Safely separate the top of the control panel enclosure from the bottom
(see
Removing the Top of the Control Panel Enclosure on page 168 ).
2. Disconnect the cable attached to the existing fan from the Panel CPU
board (J10/J11), as shown in the example in
Figure 147 .
3. Remove the four fan screws, as shown in the example in Figure 147 .

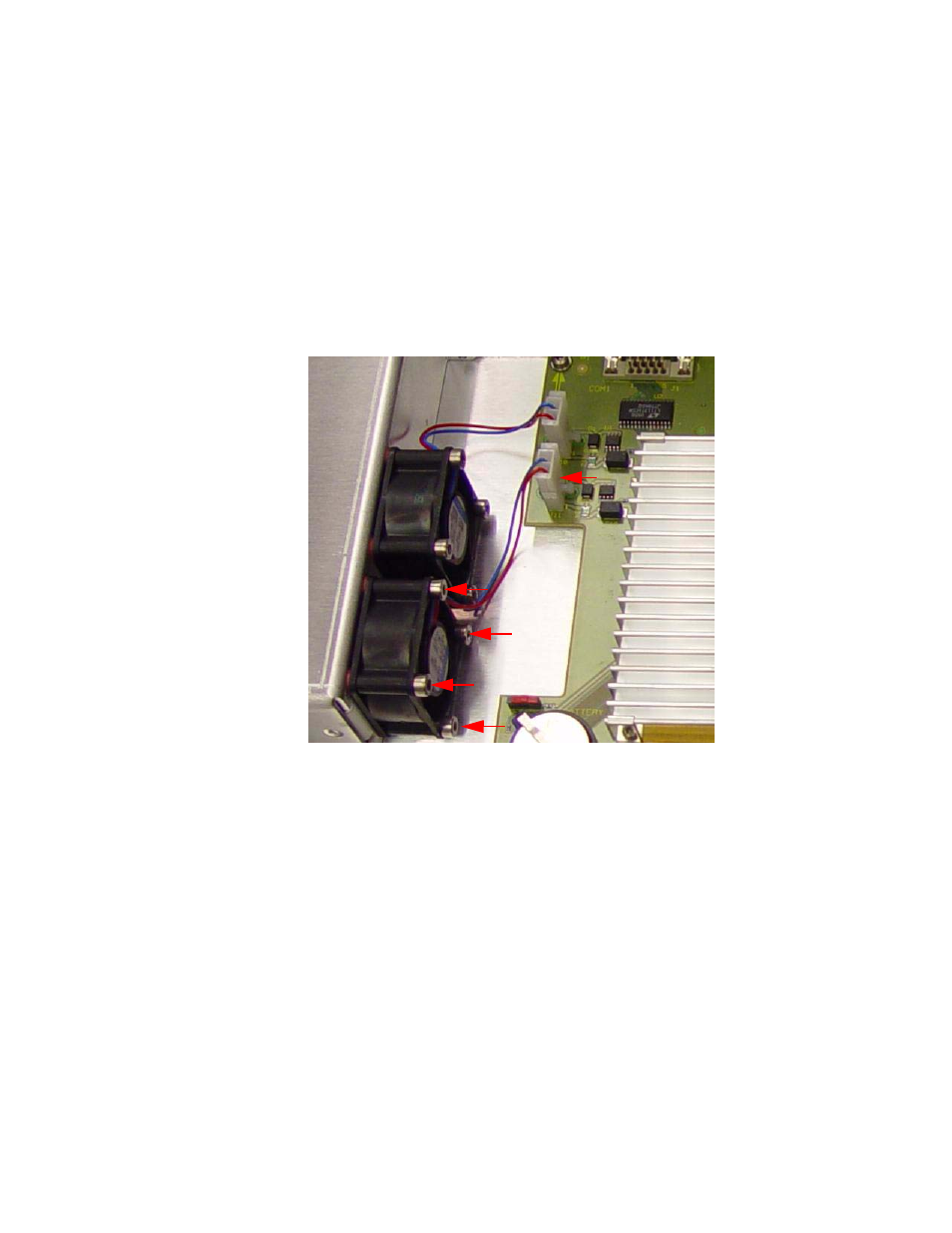

Figure 147. Kayak Control Panel Fans—Fan Replacement
4. Install the replacement fan using the preceding instructions.
