Kayak HD Video Timing

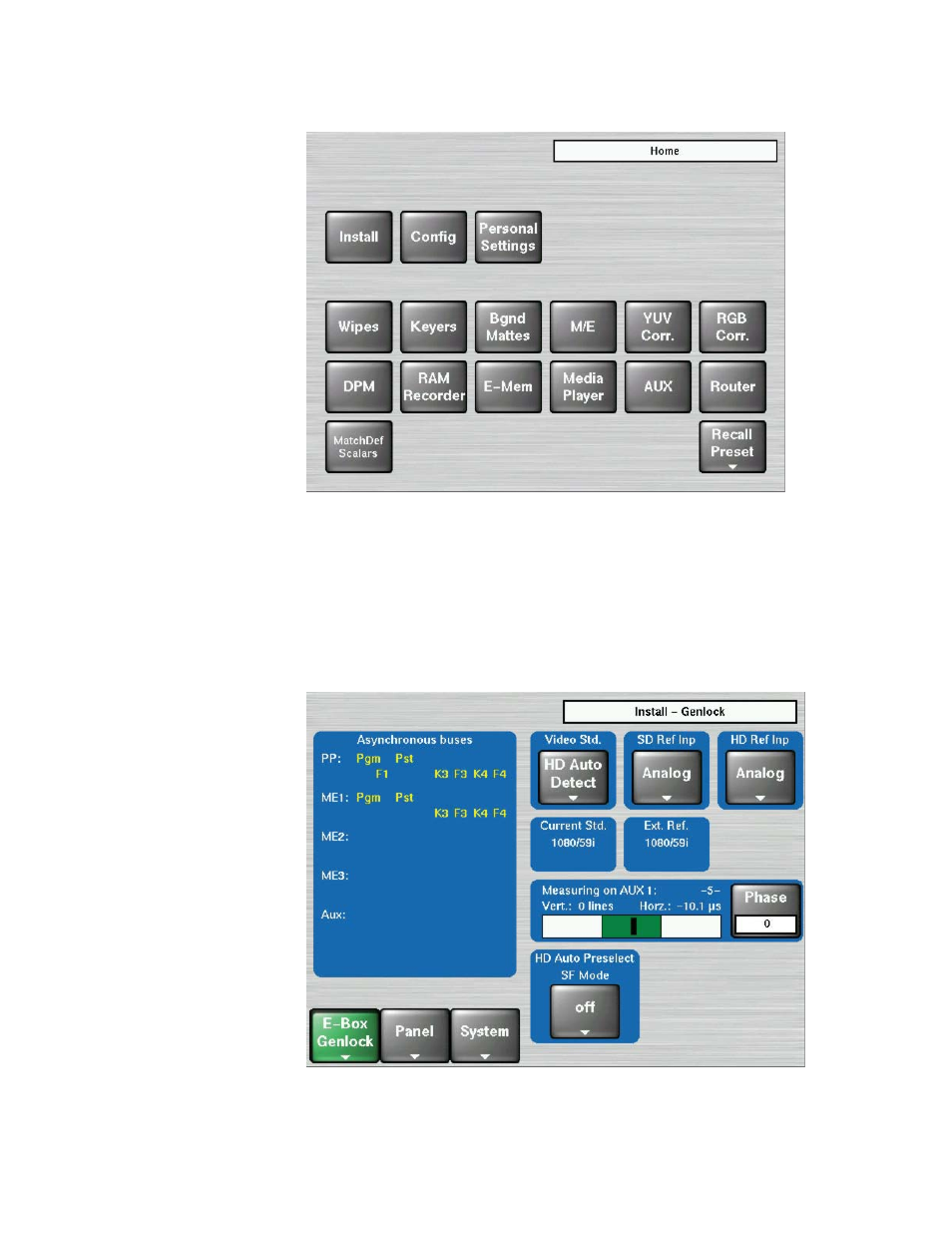

Figure 39. Kayak HD Home Menu
2. Press the Install button in the upper left-hand corner of the menu.
3. Press the E-Box Genlock button to display the Genlock menu. The Genlock
menu reports the status of the Kayak HD system sync generator. It is
used to switch between HD and SD operating modes and to adjust the
internal system timing.
Figure 40. Genlock Menu with Video Signal in Green Legal Timing Window
KHD_I
ns
tall_Ge
n
lock_LegalT
imi
