Install - AUX CP Menu
The menu serves for installing the AUX Control Panels connected with the
Kayak HD. Up to four AUX Control Panels can be installed.

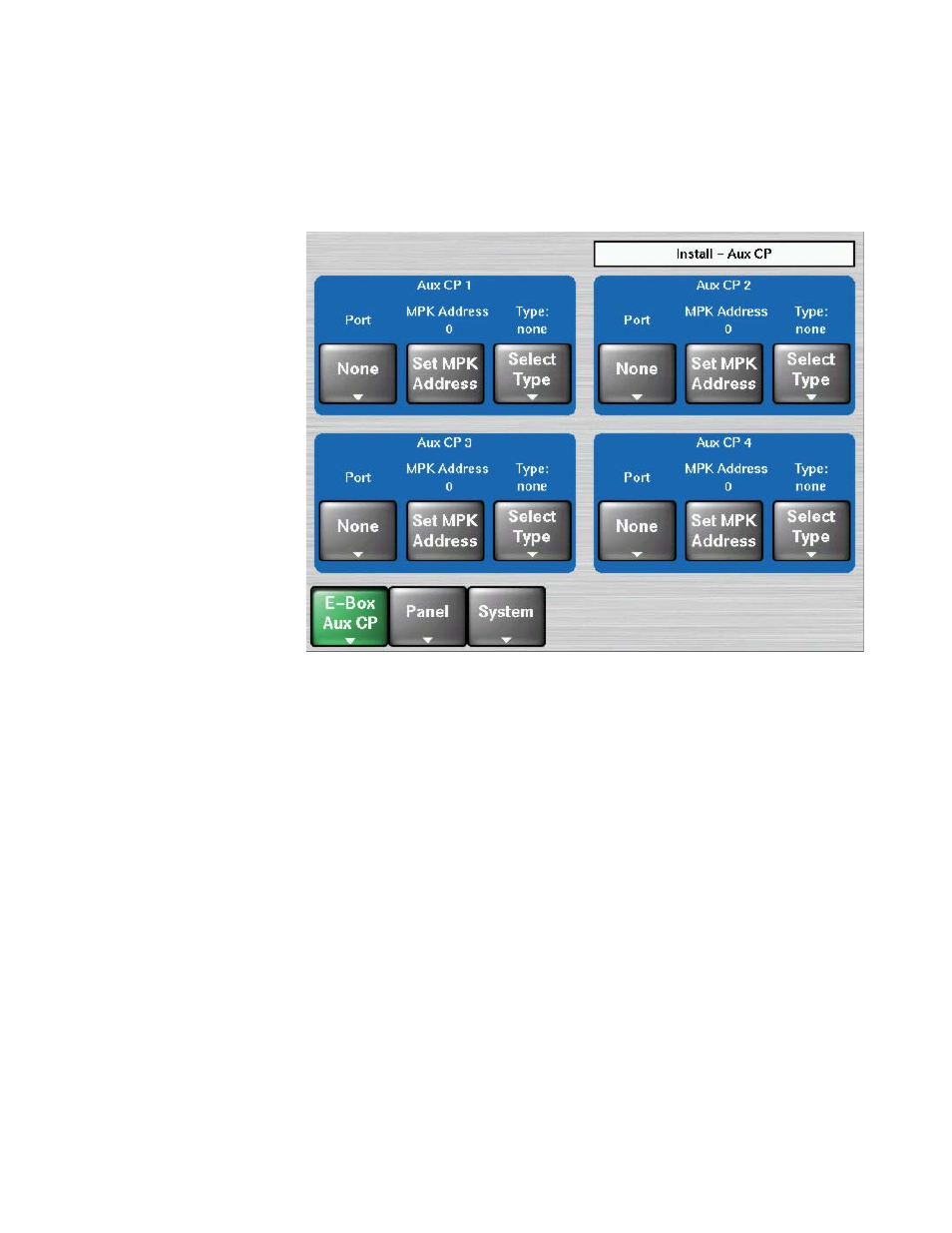

Figure 88. Install – AUX CP Menu
Type
Touching the Type button opens a dialog with all supported types of AUX
Control Panels.
Port
Touching the Port button opens a dialog with all ports plus ”None” like in
all other menus where a port must be configured.
Note Note: The port must be different to the ports used for Routers, DVEs, Editors,
Ext DSKs, etc.
MPK Address
MPK Address opens the typewriter. The physical MPK address of the AUX-
CP must be entered. Refer the label at the rear of the panel modules (e.g.
CP-3020: e0002d43).
