Kayak HD — Installation and Service Manual 85
Main Panel Adjustments
Main Panel Adjustments
Panel adjustments generally are not required, but may be necessary on
some systems.
Install - Calibration Menu
To calibrate the fader(s), joystick and touchscreen on your Kayak system:
1. From the Home menu screen press the Install button.
2. Press Panel . The Panel Setup menu displays.
3. Press Calibr. The Install-Calibration menu displays.

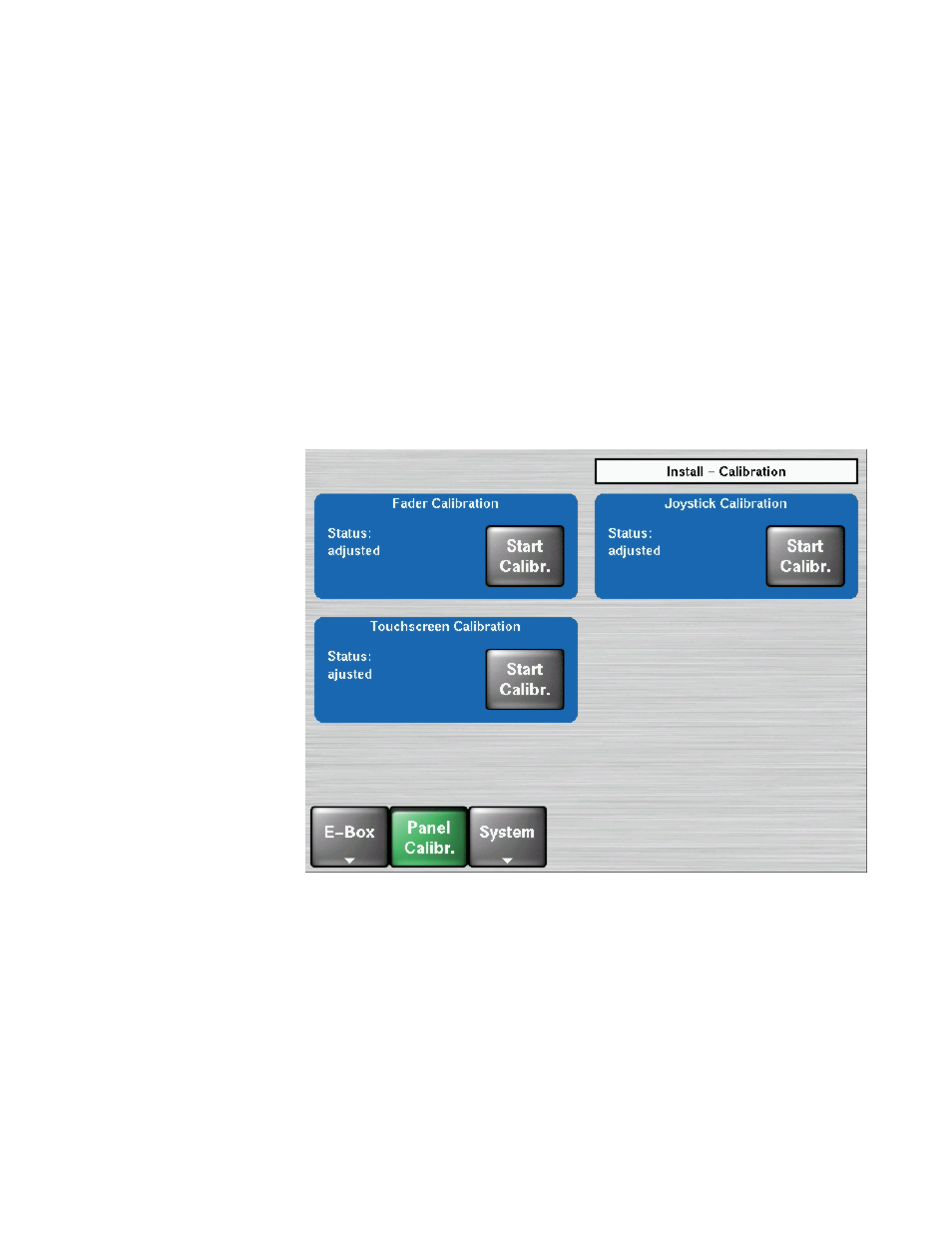

Figure 49. Install - Calibration Menu
Fader Calibration
In the Fader Calibration data pad press the Start Calibr. button and follow the
instructions:
1. Move all faders to the upper position and press OK .
2. Move all faders to the lower position and press OK .
The data pad will indicate that the Status is adjusted when done.
