Kayak HD — Installation and Service Manual 193
Additional Kayak Panel FRUs
Figure 145. Kayak Control Panel—Lever Transition Board
Replacing the 3-M/E Key/Delegate Switchboard (3-M/E only)

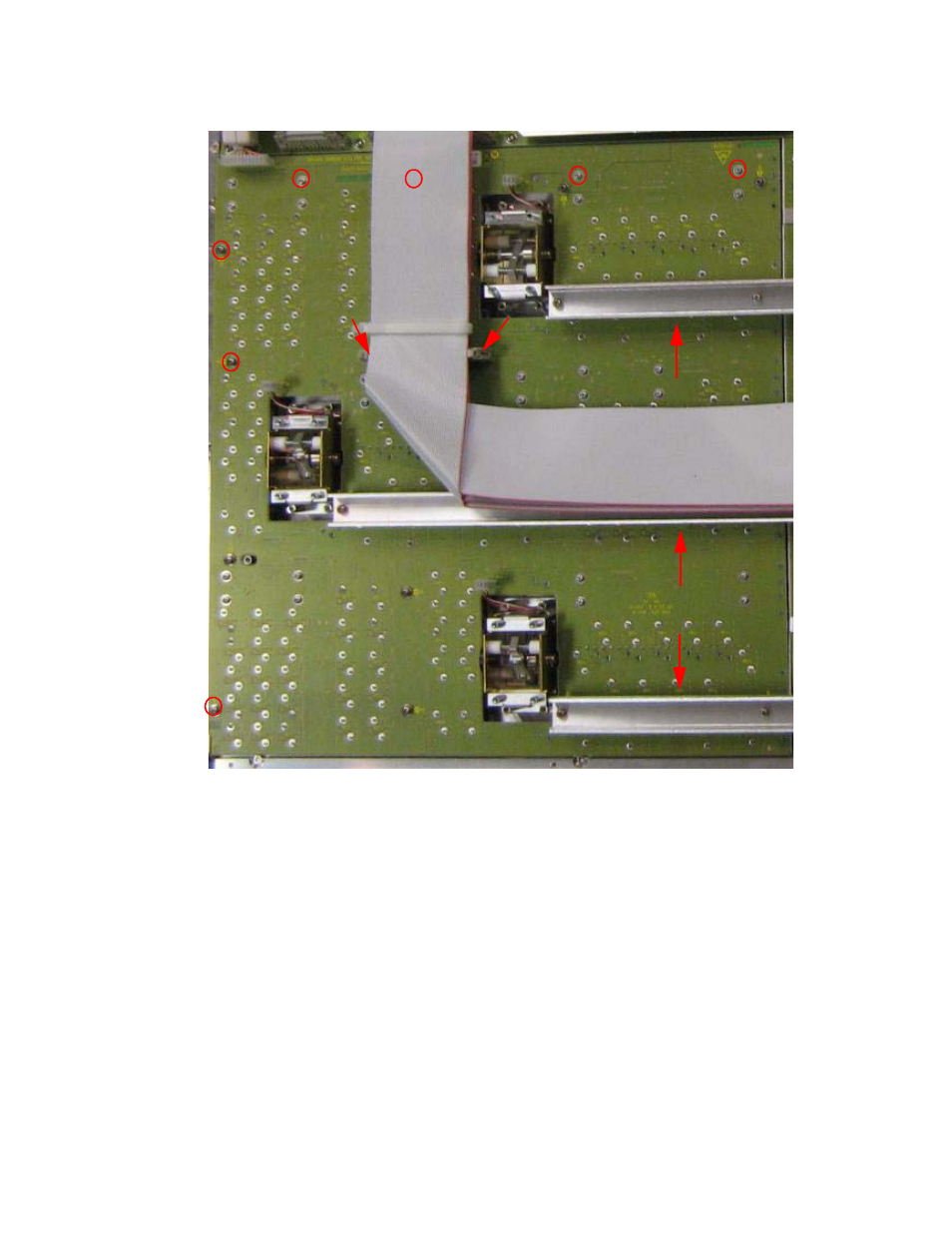

1. Disconnect the Ribbon Cable connection, as shown in Figure 146 .
2. Remove the eight screws holding XPT Switchboard—Center to the
Control Panel enclosure, as shown in
Figure 146 .
