Kayak HD — Installation and Service Manual 197
Additional Kayak Panel FRUs
Note The Hard Drive acts as the Primary Master for booting even if the Compact
Flash Card is positioned at the top of the boot arrangement.
8. Press the F10 Key and then press Enter to select Yes and save the new
BIOS settings.
Panel BIOS Settings

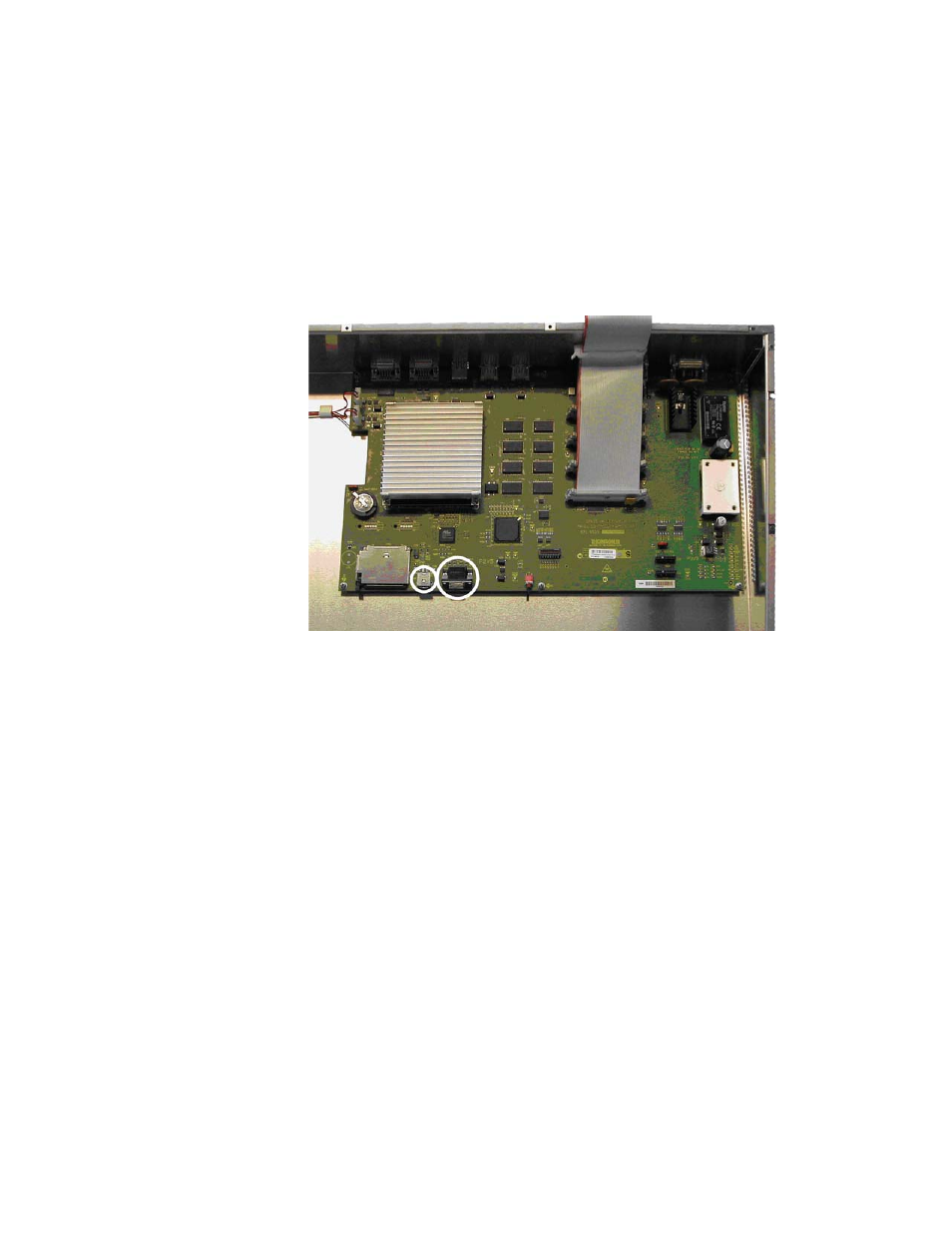

Figure 149. Top View PS/2 and VGA Sockets on the Kayak HD Panel
1. Connect a computer keyboard to the PS2 connector on the frame
controller processor board and a computer monitor VGA plug to the
VGA socket.
2. To display the BIOS Menu, press the F2 key while the switcher is booting.
3. Load BIOS Setup Default with the key F9 and confirm with Yes .
4. In the Advanced menu set the options PNP OS installed and Halt On Errors to
No .
5. In the Advanced - Advanced Chipset Control menu change the display settings
in the menu Boot / Display Control by setting the Display Mode option to CRT
only .
6. In the Advanced - PCI Configuration menu change the PCI-Interrupt Settings by
setting line 1 of the PCI IRQ option to 10.
7. In the Advanced - I/O Device Configuration menu enable both the Legacy USB
Support option and the USB Host Controller option.
8. In the Boot - Boot Device Priority menu modify the boot arrangement so that
Removable Devices is first followed by the Hard Drive ( as the Primary
Master). The boot order of other devices is not important.
