166 Kayak HD — Installation and Service Manual
Section 4 — Maintenance

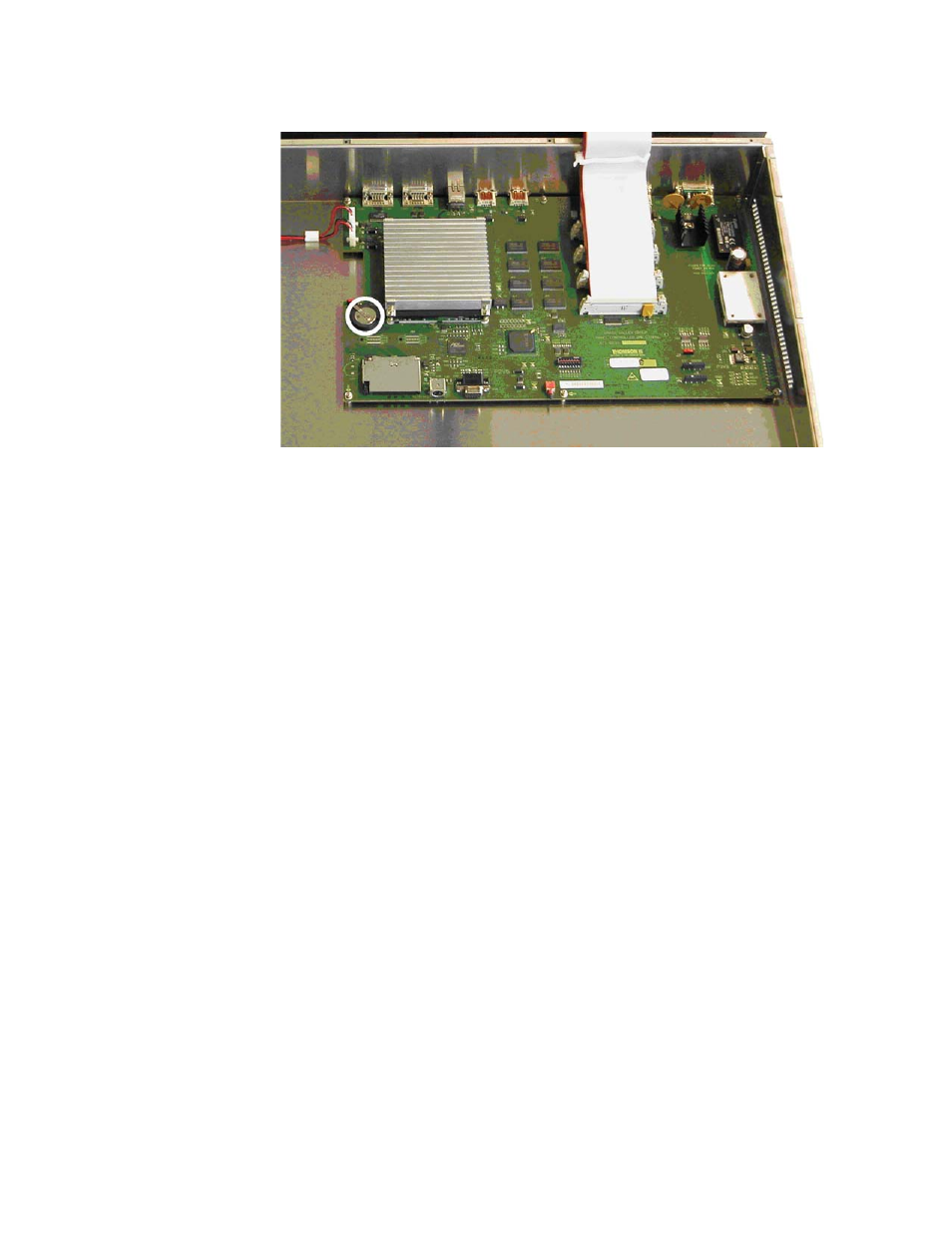

Figure 113. Battery on the Control Panel CPU Board
3. Remove the old battery by lifting the clip holding it in place.
4. Put the new battery in place and secure the clip.
5. Close the panel and fasten all screws.
6. Check the panel BIOS after replacing the panel battery using the
procedure described in
Panel BIOS Settings on page 197 .
KHD_Ct
rlPa
n
elBatte
ry
