Kayak HD — Installation and Service Manual 173
Additional Kayak Panel FRUs

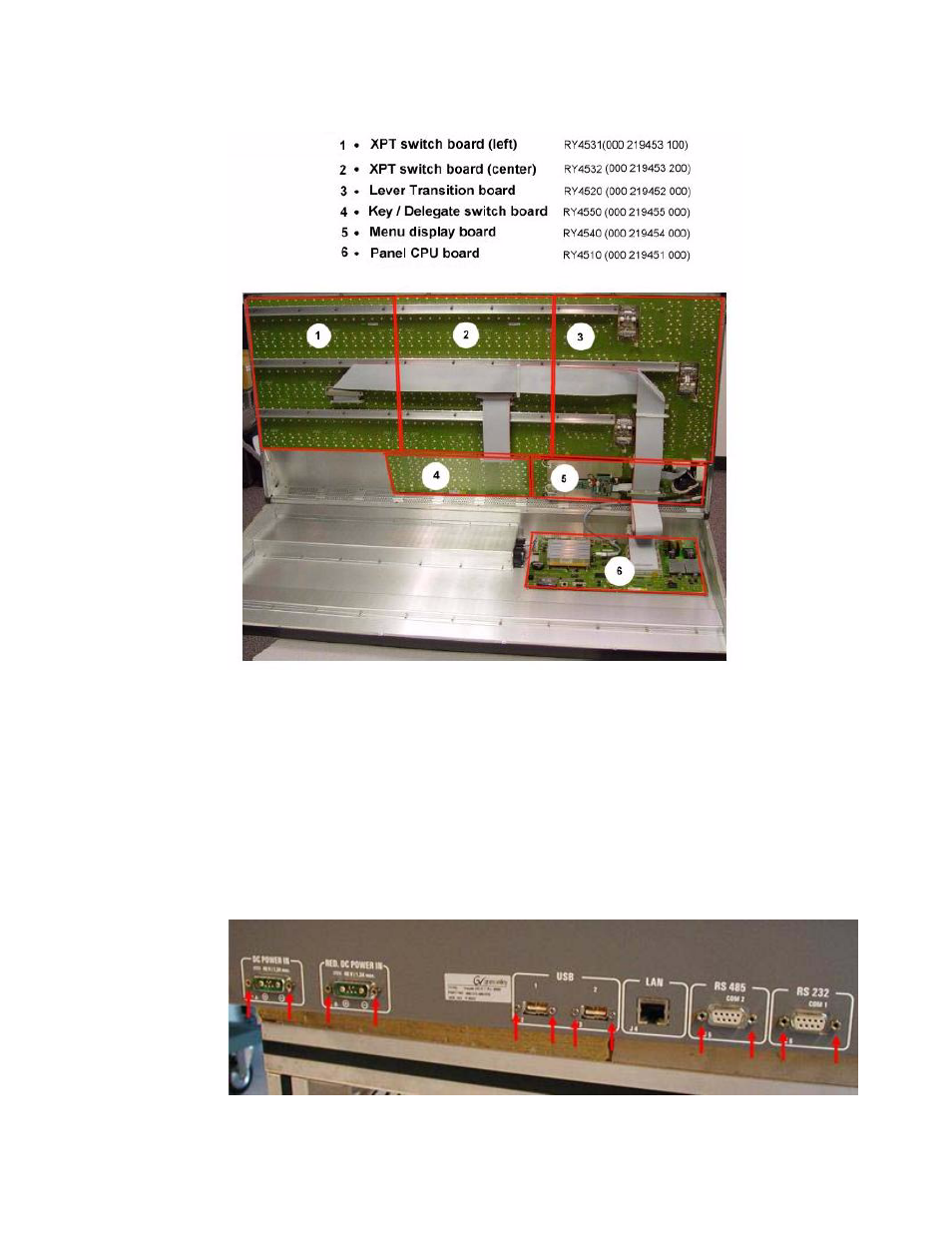

Figure 120. Kayak Control Panel—3-M/E Board FRU Positions
Replacing the Panel CPU Board (2-M/E and 3-M/E)
To replace the Panel CPU Board, complete the following steps:
1. Carefully separate the top of the control panel enclosure from the
bottom (see
Removing the Top of the Control Panel Enclosure on page 168 ).
2. Remove the twelve hex nuts connecting the Panel CPU board, at the
rear of the enclosure bottom, as shown in
Figure 121 .
Figure 121. Kayak Control Board—Rear Enclosure/Panel CPU Board Screw Removal
