Kayak HD — Installation and Service Manual
Section 2 — Installation
KDD-PSU Power Supply Option
The KDD-PSU is a 1RU frame designed for rack mounting (
).

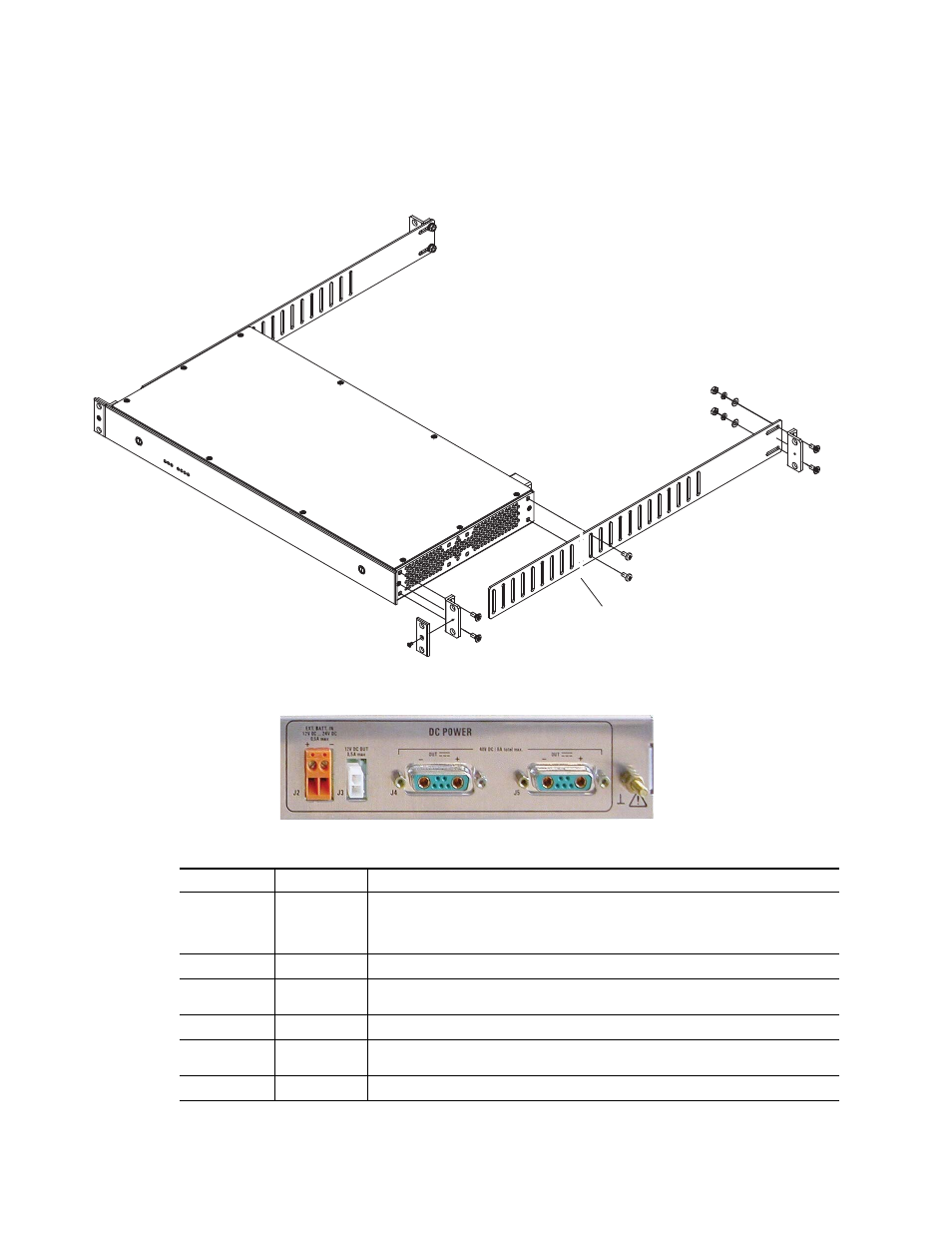

Figure 33. KDD-PSU Rack Installation
Figure 34. KDD-PSU DC Power Connectors
Table 2. KDD-PSU Rear Connectors
Jack
Designation
Note
J1
AC POWER IN
Mains connector (IEC-320, CEE-22) for power supply. Operating Voltage: 100V-240V AC +/-10%
wide-range
Caution: For continued protection against risk of fire, replace only with same type and rating of fuse.
2x 8A /T H 250V
AC POWER IN
Power switch
J2
EXT. BATT IN
12V ... 24V DC
Terminal strip for connection to external battery for buffering the RAM-Recorder data.
J3
12V DC OUT
For future use
J4, J5
DC POWER
Two output connectors for DC Power Supply. (High current D-Sub, male).
Output voltage: 48V/ total 6A max
Ground Terminal
Terminal for grounding.
Cut fastening metal so that the
ventilation openings are not covered
8324_14_r1
8448_19_
r0
