164 Kayak HD — Installation and Service Manual
Section 4 — Maintenance

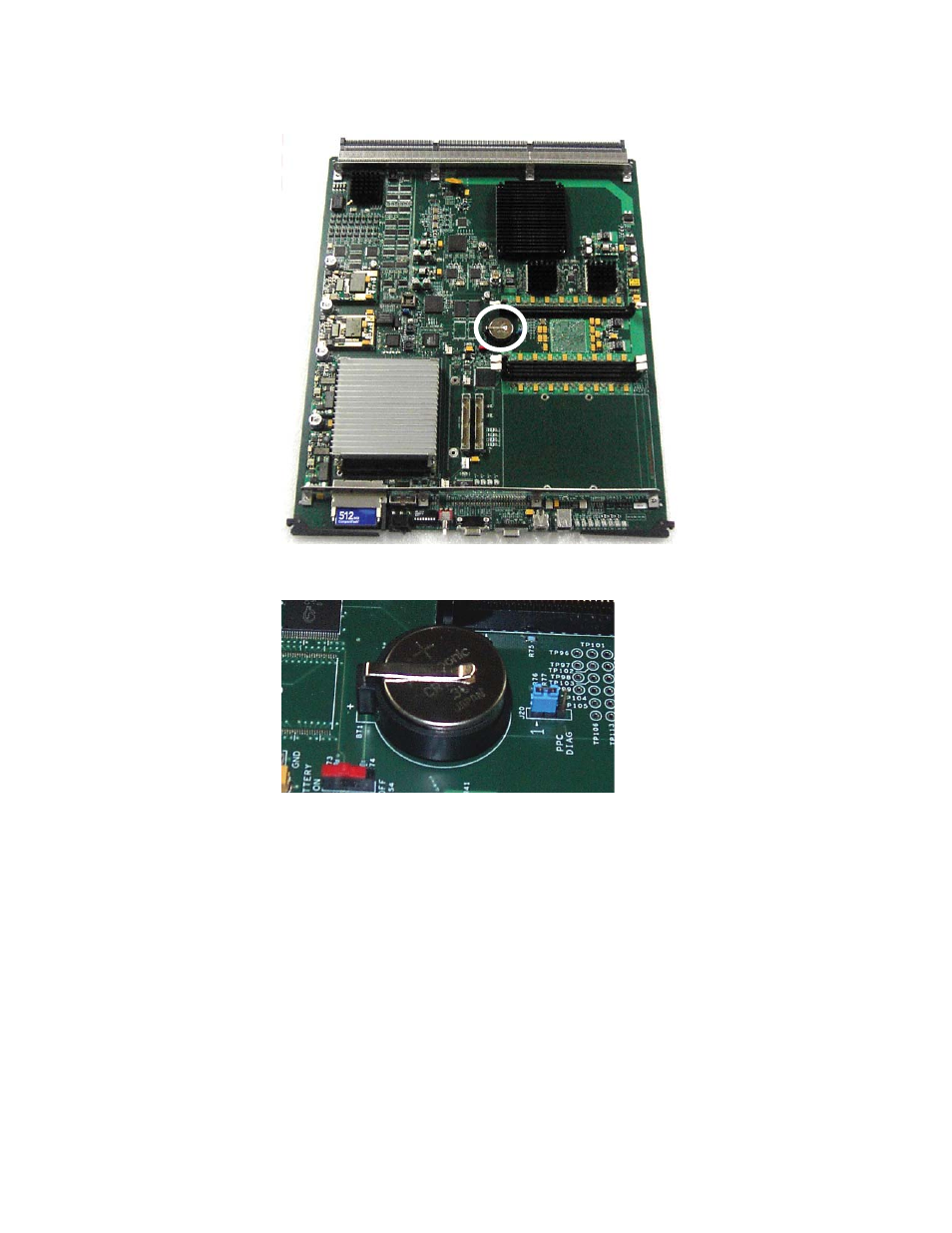

Figure 110. Kayak HD Frame Controller Board with Battery in center of board
Figure 111. Kayak HD Frame Controller Board Battery
3. Remove the old battery by lifting the clip holding it in place.
4. Put the new battery in place and secure the clip.
5. Re-insert the frame controller board and close the frame door.
6. Check the frame BIOS after replacing the frame battery using the
procedure described in
Frame BIOS Settings on page 196 .
KHD_F
reameCo
n
tr
olle
rBoa
rd
r1
KHD_F
rameBatte
ryCU
